CAN ALSO OPERATE WITH -3V TO -5.5V SUPPLY IN NECL MODE
Differential Output:
YES
Driver Number of Bits:
4
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
4
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
0.3 ns
Receiver Number of Bits:
4
Seated Height-Max:
1.2 mm
Supply Current-Max:
62 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
0.3 ns
Width:
4.4 mm
MC10EP17DTG Frequently Asked Questions (FAQs)
The recommended operating voltage range for the MC10EP17DTG is 3.0V to 5.5V, although it can tolerate up to 7V for short periods.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive package, and keeping the junction temperature below 150°C.
The MC10EP17DTG supports data transfer rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
To minimize signal integrity and jitter issues, it's crucial to follow proper PCB design guidelines, use high-quality components, and implement signal conditioning techniques such as equalization and pre-emphasis.
Yes, the MC10EP17DTG is compatible with other differential signaling standards such as CML, PECL, and LVPECL, making it a versatile solution for various high-speed applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC10EP17DTG Overview

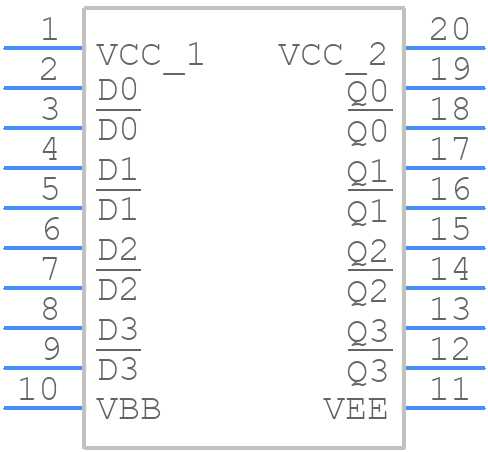

Use the download button to access the MC10EP17DTG schematic symbol, PCB footprint, and 3D model.
