MC1403BP1 - onsemi

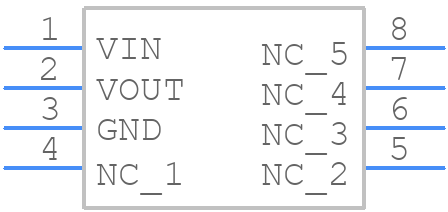

MC1403BP1 Details

• Manufacturer Part Number:

  MC1403BP1

• Brand Name:

  onsemi

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  8 LEAD PDIP

• Pin Count:

  8

• Manufacturer Package Code:

  626-05

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  THREE TERMINAL VOLTAGE REFERENCE

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e0

• Length:

  9.78 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  2.525 V

• Output Voltage-Min:

  2.475 V

• Output Voltage-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Supply Voltage-Max (Vsup):

  40 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temp Coef of Voltage-Max:

  40 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Trim/Adjustable Output:

  NO

• Voltage Tolerance-Max:

  1%

• Width:

  7.62 mm
