- Part Number MC1408P8
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

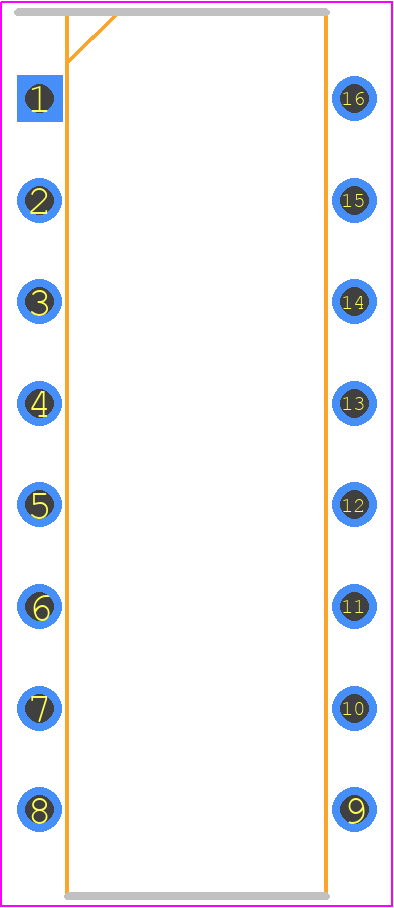

- Footprint Name Dual-In-Line Packages - MC1408P8
- Released Date Apr 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC1408P8 Details
-
Manufacturer Part Number:
MC1408P8
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Converter Type:
D/A CONVERTER
-
Input Bit Code:
BINARY
-
JESD-30 Code:
R-PDIP-T16
MC1408P8 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MC14008P8 is 4.5V to 5.5V.
-
To ensure proper power-on and power-off, it is recommended to use a power-on reset (POR) circuit and a voltage supervisor to monitor the power supply voltage.
-
The maximum clock frequency supported by the MC14008P8 is 2 MHz.
-
Asynchronous inputs should be synchronized with the clock signal using a synchronizer circuit to prevent metastability issues.
-
To minimize noise and ensure reliable operation, it is recommended to follow good PCB layout and routing practices, such as separating analog and digital signals, using ground planes, and minimizing trace lengths.
Trust Checks
Community Provided
System Verified
Community Approved
MC1408P8 Overview

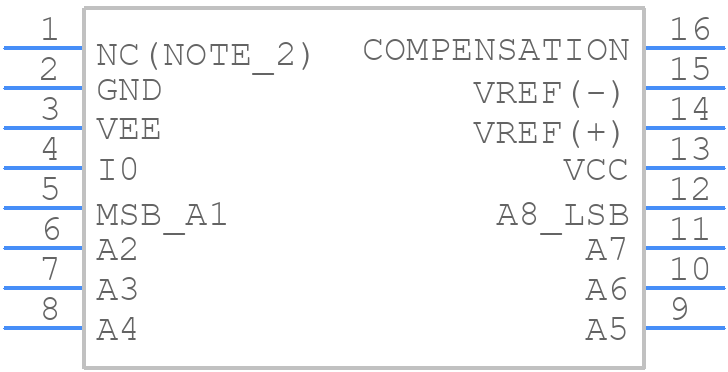

Use the download button to access the MC1408P8 schematic symbol, PCB footprint, and 3D model.
