MC32PF3000A7EP - NXP

Description: NXP - MC32PF3000A7EP - \u7535\u6E90\u7BA1\u7406\u82AF\u7247, I2C, QFN-EP-48

Download MC32PF3000A7EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

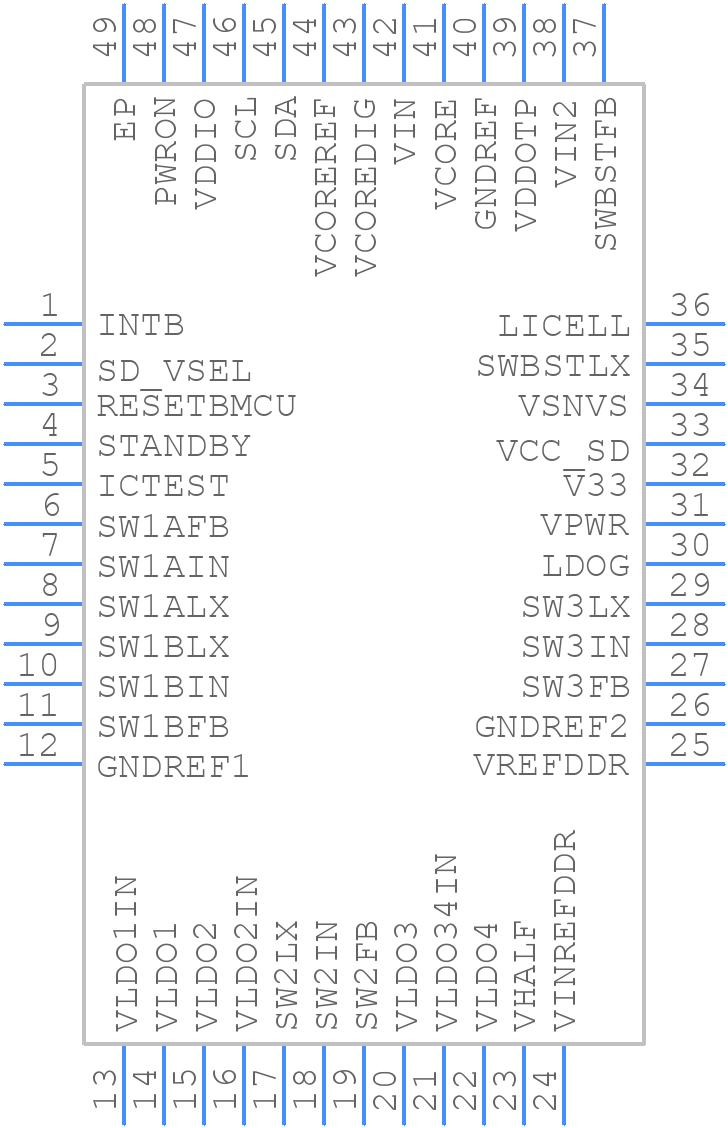

Symbol
MC32PF3000A7EP - NXP - PCB symbol
click to zoom
PCB Footprints
MC32PF3000A7EP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-pin QFN
click to zoom
3D Models
MC32PF3000A7EP - NXP - 3D model - Quad Flat No-Lead - 48-pin QFN
click to zoom

MC32PF3000A7EP Details

  • Manufacturer Part Number:

    MC32PF3000A7EP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Additional Feature:

    ALSO OPERATES WITH 3.7V TO 5.5V; ALSO OPERATES WITH COIN CELL VOLTAGE OF 1.8 TO 4.5V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC32PF3000A7EP Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the MC32PF3000A7EP is 32.768 kHz, which is the typical frequency used for real-time clock (RTC) applications.
  • To configure the MC32PF3000A7EP for low-power mode, you need to set the Power Mode Control Register (PMC) to the desired low-power mode (e.g., sleep, deep sleep, or power-down mode). You also need to configure the clock gating and peripheral shutdown to minimize power consumption.
  • The maximum operating frequency of the MC32PF3000A7EP is 72 MHz, but it can be overclocked up to 80 MHz with reduced voltage and temperature ranges.
  • To use the ADC on the MC32PF3000A7EP, you need to configure the ADC clock, select the ADC channel, and set the ADC mode (e.g., single-shot or continuous conversion). You also need to configure the ADC pins as analog inputs and enable the ADC peripheral.
  • The maximum current consumption of the MC32PF3000A7EP depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is around 350 mA at 72 MHz and 3.3 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC32PF3000A7EP Overview

Use the download button to access the MC32PF3000A7EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC32P, or try a keyword search, such as Power Management Circuits
