MC32PF8121A0EP - NXP

Description: Power Management IC, i.MX8, non-prog, 7 buck, 4 LDO, Industrial, QFN 56

Download MC32PF8121A0EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC32PF8121A0EP - NXP - PCB symbol
click to zoom
PCB Footprints

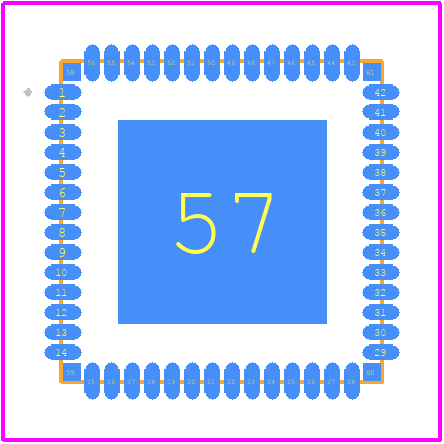

MC32PF8121A0EP - NXP PCB footprint - Other - Other - SOT684-21 (HVQFN56)
click to zoom
3D Models
MC32PF8121A0EP - NXP - 3D model - Other - SOT684-21 (HVQFN56)
click to zoom

MC32PF8121A0EP Details

  • Manufacturer Part Number:

    MC32PF8121A0EP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    40
