MC33035DWR2G - onsemi

Description: Can Efficiently Control Brush DC Motors with External MOSFET H-Bridge; Fully Accessible Err Amplifier for Closed Loop Servo Applications; 10 to 30 V Operation; 6.25 V Reference Capable of Supplying Sensor Power; Selectable 60° /300° or 120° /240° Sensor Phasings; Cycle-By-Cycle Current Limiting; Undervoltage Lockout; Internal Thermal Shutdown; Pinned-Out Current Sense Reference; High Current Drivers Can Control External 3-Phase MOSFET Bridge

Download MC33035DWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

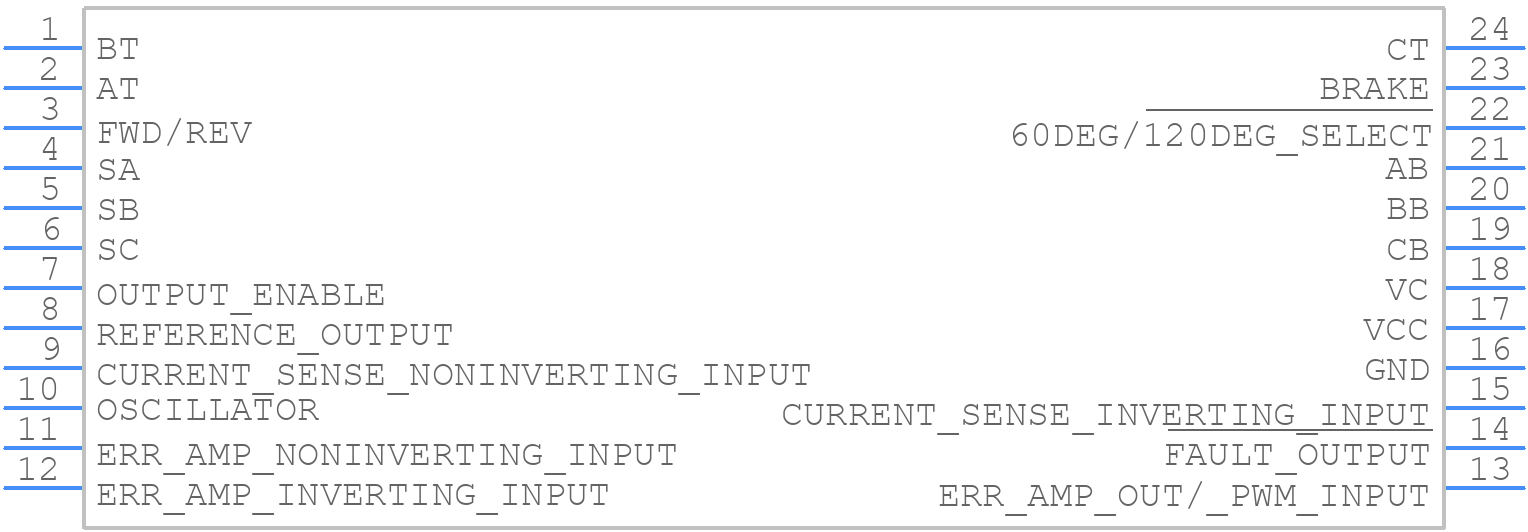

Symbol
MC33035DWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33035DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom
3D Models
MC33035DWR2G - onsemi - 3D model - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom

MC33035DWR2G Details

  • Manufacturer Part Number:

    MC33035DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC−24 WB

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    0.0751

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.395 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MC33035DWR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33035DWR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The MC33035DWR2G is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet for thermal resistance and power dissipation calculations.
  • Yes, the MC33035DWR2G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in an IATF 16949 certified facility.
  • Power dissipation can be calculated using the formula: Pd = (Vin x Iin) + (Vout x Iout). Consult the datasheet for the device's thermal resistance and maximum power dissipation ratings.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33035DWR2G Overview

Use the download button to access the MC33035DWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330, or try a keyword search, such as Motion Control Electronics
