Description:Can Efficiently Control Brush DC Motors with External MOSFET H-Bridge; Fully Accessible Error Amplifier for Closed Loop Servo Applications; 10 to 30 V Operation; 6.25 V Reference Capable of Supplying Sensor Power; Selectable 60° /300° or 120° /240° Sensor Phasings; Cycle-By-Cycle Current Limiting; Undervoltage Lockout; Internal Thermal Shutdown; Pinned-Out Current Sense Reference; High Current Drivers Can Control External 3-Phase MOSFET Bridge
A good PCB layout for the NCV33035DWR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. Additionally, it's recommended to use a shielded inductor and to keep the device away from other noise-sensitive components.
To ensure the NCV33035DWR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
The NCV33035DWR2G has a thermal pad that must be connected to a solid ground plane to ensure good heat dissipation. A thermal via or a thermal pad on the PCB can help to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components.
To troubleshoot issues with the NCV33035DWR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for any unusual waveforms or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
The NCV33035DWR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded. Avoid touching the device's pins or exposing it to static electricity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV33035DWR2G Overview

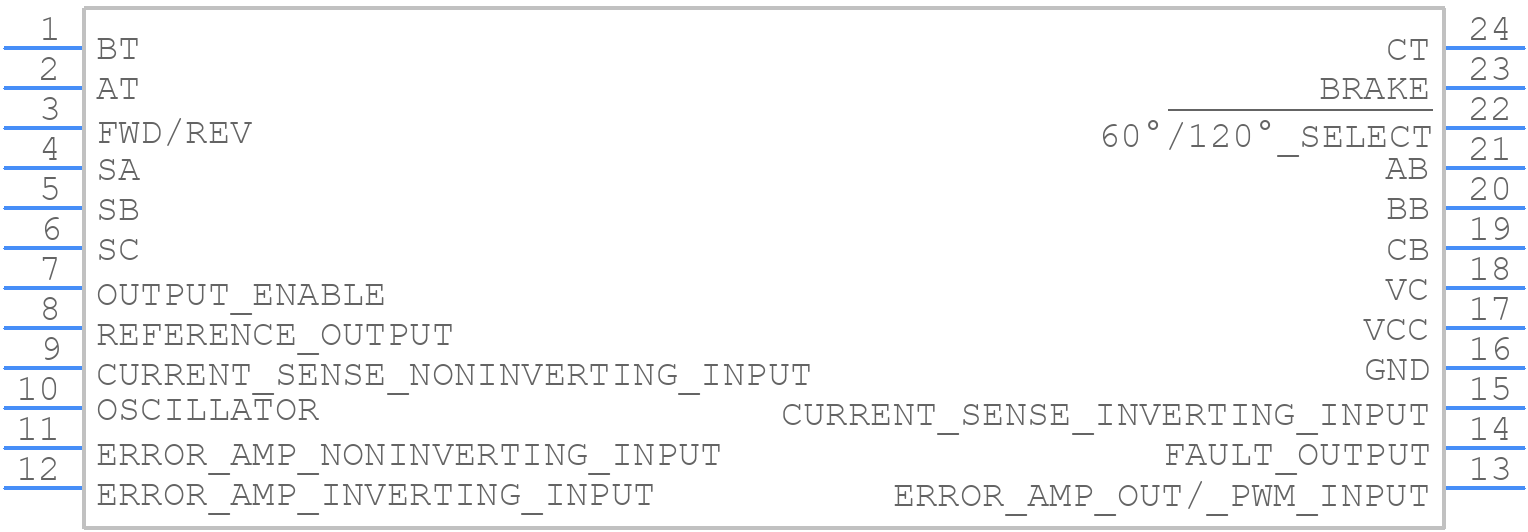

Use the download button to access the NCV33035DWR2G schematic symbol, PCB footprint, and 3D model.
