Texas Instruments recommends a compact layout with the MC3303DG4 placed close to the power supply and load, with short traces and minimal inductance. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note SLVAE04 for more details.
To ensure stability, use a minimum output capacitance of 10uF, and ensure the output voltage is within the recommended range. Also, use a low-ESR capacitor and keep the feedback loop impedance low. Additionally, add a 1nF to 10nF capacitor in parallel with the feedback resistor to improve stability.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
The MC3303DG4 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation. Use a heat sink or thermal pad to keep the junction temperature below 125°C. Also, derate the output current and voltage according to the temperature derating curve in the datasheet.
The output voltage ripple can be estimated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. Use a low-ESR capacitor and a high-frequency switching regulator to minimize the output voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC3303DG4 Overview

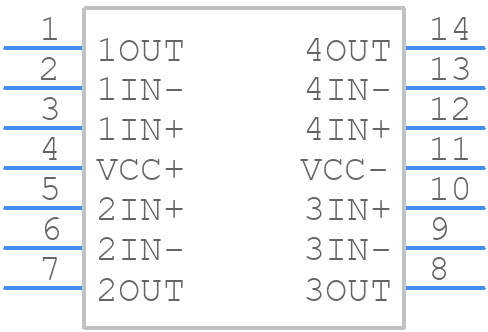

Use the download button to access the MC3303DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
