MC33064D-5G - onsemi

Description: Comparator Hysteresis Prevents Erratic Reset; Low Standby Current; Internal Clamp Diode for Discharging Delay Capacitor; Trimmed-In-Package Temperature Compensated Reference; Comparator Threshold of 4.6 V at 25° C; Guaranteed Reset Operation with 1.0 V Input; Economical TO-226AA, SO-8, Micro-8 and SOT-23/TSOP-5 Surface Mount Packages; Reset Output Capable of Sinking in Excess of 10 mA; Precise Comparator Thresholds Guaranteed Over Temperature; Pb-Free Packages are Available

Download MC33064D-5G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

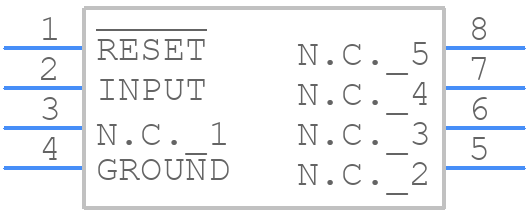

MC33064D-5G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33064D-5G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOC_NB
click to zoom
3D Models
MC33064D-5G - onsemi - 3D model - Small Outline Packages - SOC_NB
click to zoom

MC33064D-5G Details

  • Manufacturer Part Number:

    MC33064D-5G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
