Part Image

MC33153PG - onsemi

Description: Undervoltage Lockout Optimized for IGBT's; Protection against Overcurrent and Short Circuit; Cost Effectively Drives Power MOSFETs and Bipolar Transistors; High Current Output Stage: 1.0 A Source/2.0 A Sink; Programmable Fault Blanking Time; Negative Gate Drive Capability; Protection Circuits for Both Conventional and Sense IGBTs; Pb-Free Packages are Available

Download MC33153PG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

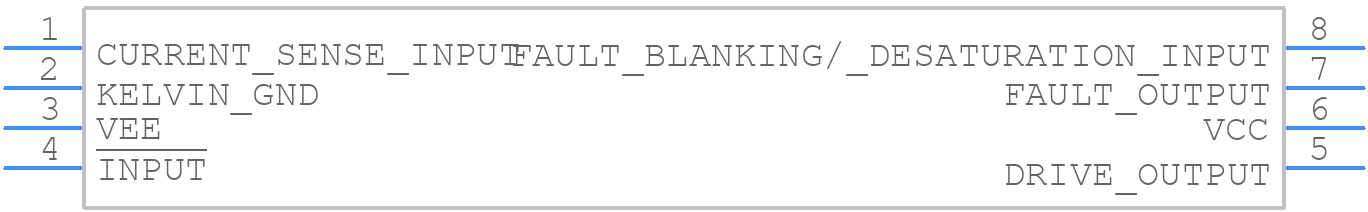

Symbol
MC33153PG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC33153PG - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8 CASE626-05
click to zoom
3D Models
MC33153PG - onsemi - 3D model - Dual-In-Line Packages - PDIP-8 CASE626-05
click to zoom

MC33153PG Details

  • Manufacturer Part Number:

    MC33153PG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8 LEAD PDIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    626-05

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    1995-09-01

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.3 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    7.62 mm

MC33153PG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33153PG involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The maximum ambient temperature for the MC33153PG is 125°C. However, the device can operate at higher temperatures with derating. It's essential to ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
  • Yes, the MC33153PG is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a comprehensive set of reliability data, including FIT rates and MTBF calculations, to support high-reliability designs.
  • To troubleshoot issues with the MC33153PG, start by checking the PCB layout, component values, and soldering quality. Verify that the input and output capacitors are properly connected and that the inductor is correctly selected. Use an oscilloscope to measure the switching node and output voltage waveforms to identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33153PG Overview

Use the download button to access the MC33153PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC331, or try a keyword search, such as MOSFET Drivers
