- Stock & Prices $ Price & Stock for MC33772BSP1AE
- Part Number MC33772BSP1AE
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - 48-pin LQFP-EP
- Released Date Jan 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC33772BSP1AE Details
-
Manufacturer Part Number:
MC33772BSP1AE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Date Of Intro:
2018-08-01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
12
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
MC33772BSP1AE Frequently Asked Questions (FAQs)
-
A good PCB layout for the MC33772BSP1AE involves keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
The inductor value for the MC33772BSP1AE depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet, and then adjust it based on the specific application requirements.
-
The MC33772BSP1AE is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system.
-
Proper thermal management for the MC33772BSP1AE involves using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. The thermal pad on the device should be connected to a solid ground plane to help dissipate heat.
-
When using the MC33772BSP1AE, it's essential to use proper EMI filtering to meet regulatory requirements. This includes using a common-mode choke, X-capacitors, and Y-capacitors, and ensuring that the layout is designed to minimize radiation and susceptibility.
Trust Checks
Community Provided
System Verified
Community Approved
MC33772BSP1AE Overview

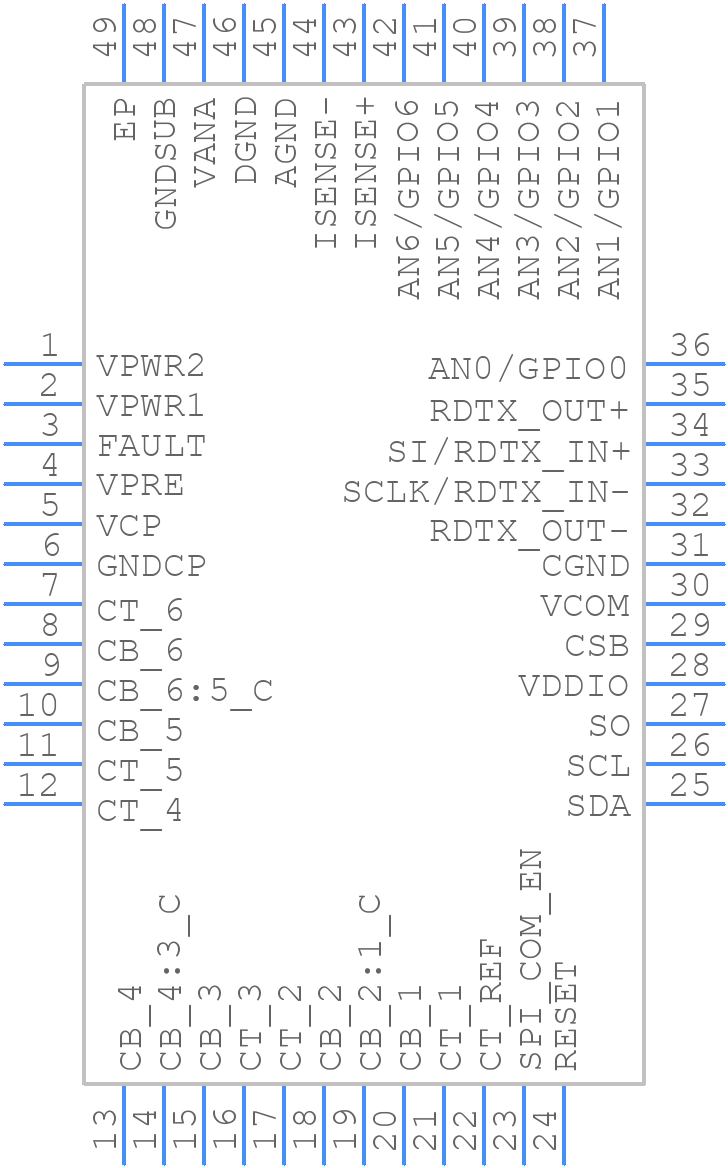

Use the download button to access the MC33772BSP1AE schematic symbol, PCB footprint, and 3D model.
