Part Image

MC33FS6511CAE - NXP

Description: Power Management Specialized - PMIC System Basis Chip, DCDC 1.5A Vcore FS1B CAN, LQFP48EP 1V ~ 5V -40°C ~ 125°C

Download MC33FS6511CAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

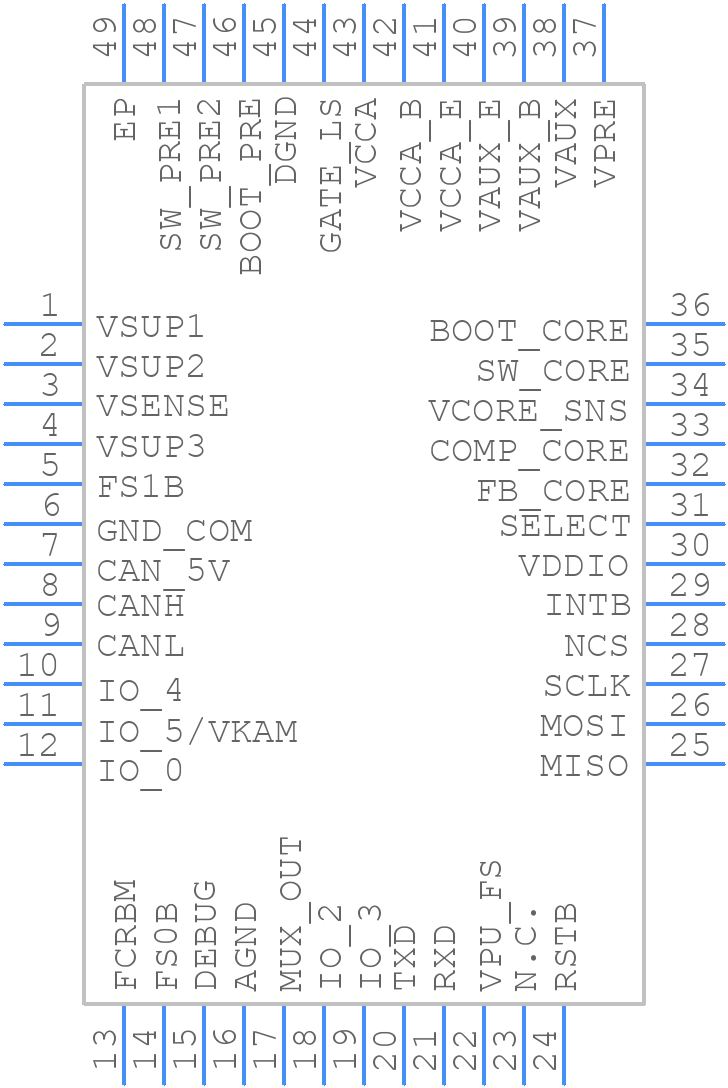

MC33FS6511CAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6511CAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1
click to zoom
3D Models
MC33FS6511CAE - NXP - 3D model - Quad Flat Packages - SOT1571-1
click to zoom

MC33FS6511CAE Details

  • Manufacturer Part Number:

    MC33FS6511CAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6511CAE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the application note AN12085, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33FS6511CAE has multiple power modes, including low-power mode, sleep mode, and shutdown mode. Configuration is done through the device's registers, which can be accessed through the I2C interface. Refer to the device's programming guide and register map for specific details on how to configure each power mode.
  • The MC33FS6511CAE has an operating temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications. However, it's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
  • The MC33FS6511CAE is designed to work with NXP's MC33LD5030 voltage regulator, but it can be used with other voltage regulators that meet the device's power requirements. However, it's crucial to ensure that the chosen voltage regulator provides a stable output voltage and meets the device's power sequencing requirements.
  • NXP provides a troubleshooting guide in the device's application note AN12085, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and logic analyzers to debug the device's operation and identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33FS6511CAE Overview

Use the download button to access the MC33FS6511CAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33F, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
