MC33FS6520LAE - NXP

Description: Power Management Specialized - PMIC System Basis Chip, DCDC 2.2A Vcore CAN LIN, LQFP48EP

Download MC33FS6520LAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

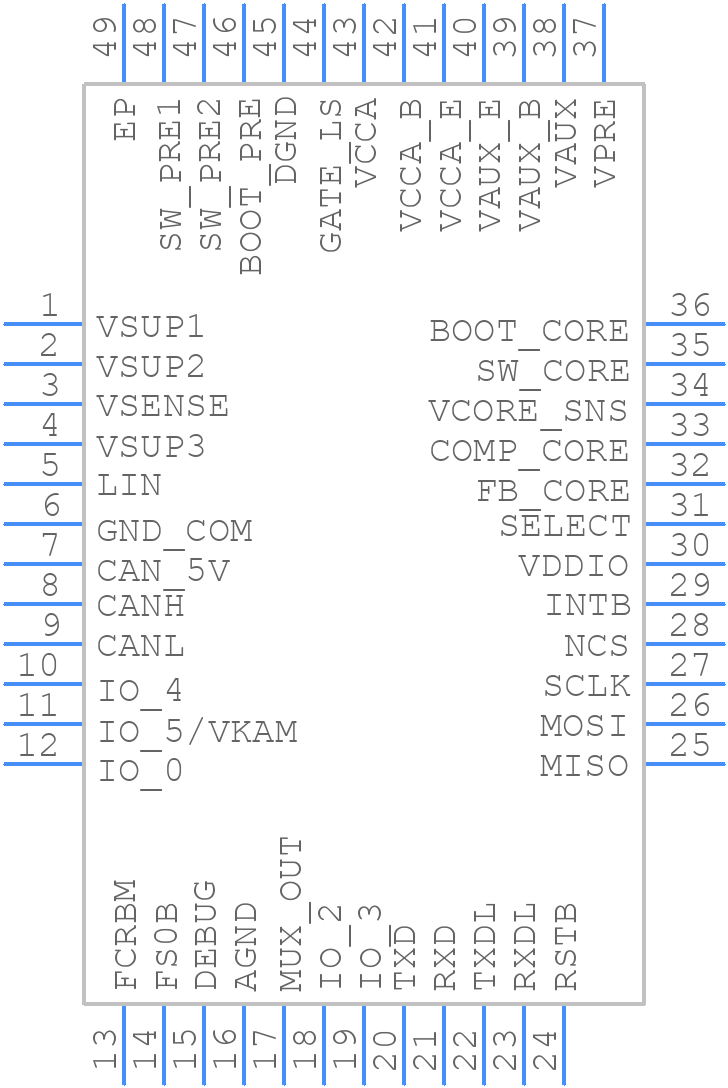

MC33FS6520LAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6520LAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1
click to zoom
3D Models
MC33FS6520LAE - NXP - 3D model - Quad Flat Packages - SOT1571-1
click to zoom

MC33FS6520LAE Details

  • Manufacturer Part Number:

    MC33FS6520LAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6520LAE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MC33FS6520LAE application note (AN12242) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The MC33FS6520LAE has multiple power modes (e.g., low-power mode, shutdown mode) that can be configured through the device's registers. Refer to the device's programming guide (PG_FS6520) for detailed information on how to configure the power modes using the I2C interface.
  • The MC33FS6520LAE has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within the -20°C to 85°C range for optimal performance and reliability.
  • NXP provides a troubleshooting guide (AN12243) that covers common issues and their solutions, including debugging techniques, error codes, and FAQs. Additionally, NXP's support team can be contacted for further assistance.
  • While the MC33FS6520LAE is primarily designed for automotive applications, it can be used in non-automotive applications as well, provided the device's specifications and operating conditions are met. However, it's essential to ensure that the device meets the specific requirements of the target application.
