MC33FS6523CAE - NXP

Description: NXP - MC33FS6523CAE - SBC, CAN, LIN, HLQFP-48

Download MC33FS6523CAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

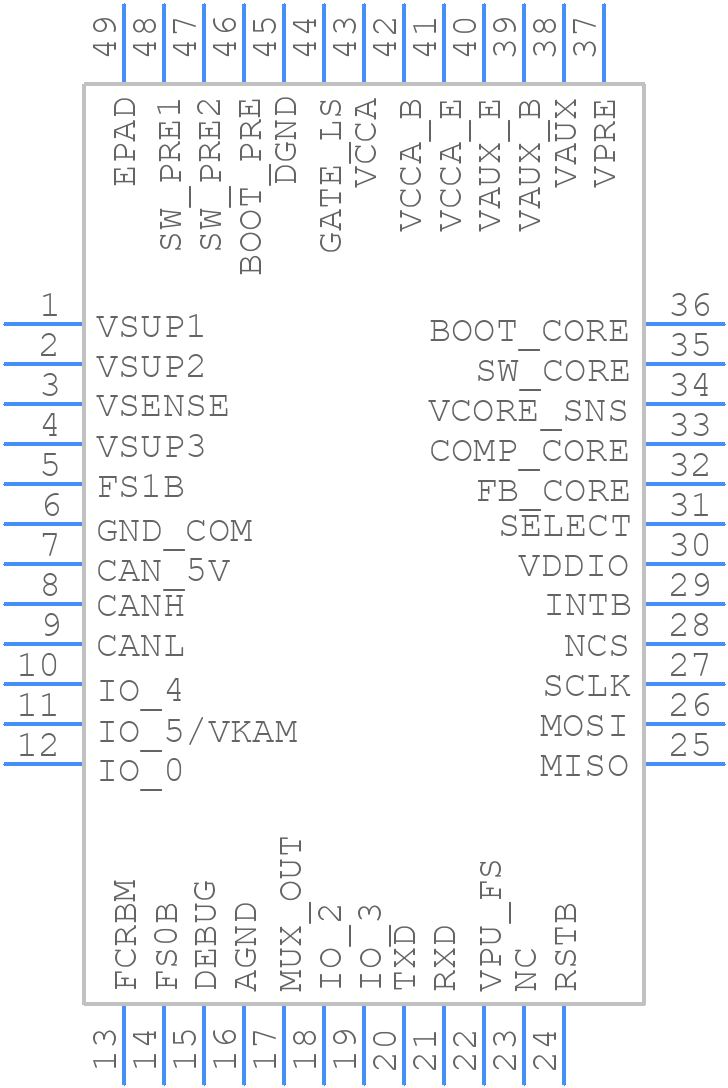

MC33FS6523CAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6523CAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC35FS6500CAE
click to zoom
3D Models
MC33FS6523CAE - NXP - 3D model - Quad Flat Packages - MC35FS6500CAE
click to zoom

MC33FS6523CAE Details

  • Manufacturer Part Number:

    MC33FS6523CAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6523CAE Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33FS6523CAE involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To configure the MC33FS6523CAE for low-power mode, set the EN pin low, and ensure that the VCC pin is connected to a voltage source. You can also use the shutdown mode by setting the SD pin low. Additionally, you can reduce the clock frequency and adjust the bias current to minimize power consumption.
  • The MC33FS6523CAE has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the MC33FS6523CAE, start by checking the power supply voltage and ensuring that it's within the recommended range. Verify that the device is properly configured and that the input signals are within the specified range. Use an oscilloscope to check the output signals and verify that they're within the expected range. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MC33FS6523CAE is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the overall system.
