MC33FS6523CAER2 - NXP

Description: Power System Basis Chip Automotive 48-Pin HLQFP EP T/R

Download MC33FS6523CAER2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

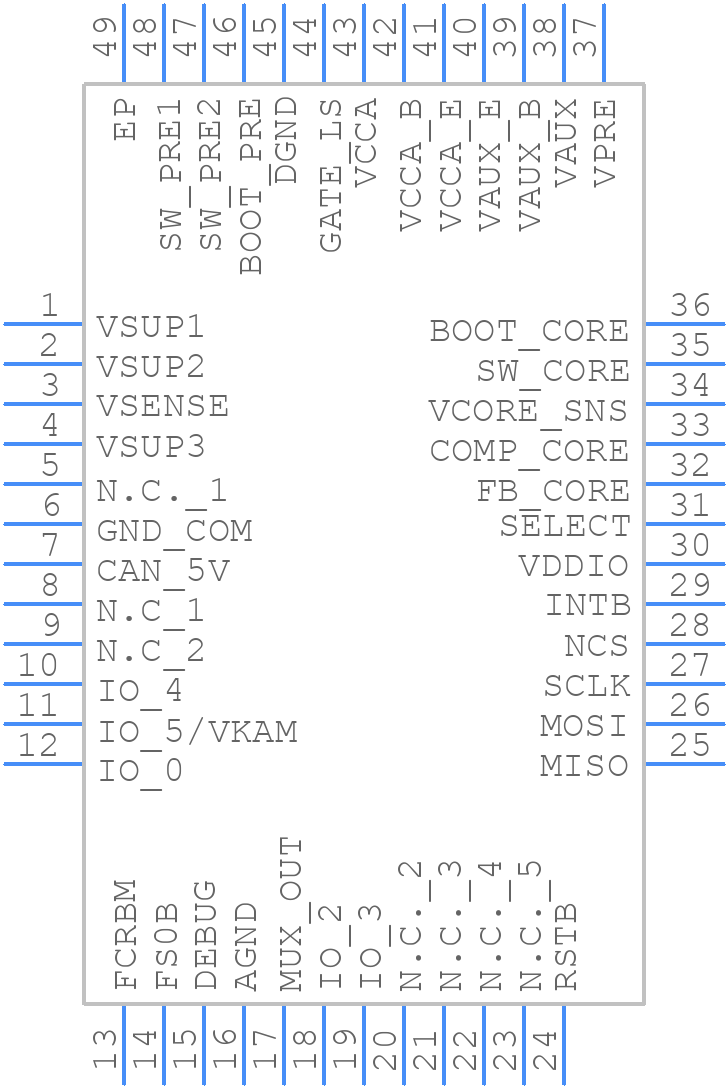

MC33FS6523CAER2 - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6523CAER2 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1_2022
click to zoom
3D Models
MC33FS6523CAER2 - NXP - 3D model - Quad Flat Packages - SOT1571-1_2022
click to zoom

MC33FS6523CAER2 Details

  • Manufacturer Part Number:

    MC33FS6523CAER2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6523CAER2 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN12085, which includes guidelines for component placement, routing, and thermal management.
  • The MC33FS6523CAER2 has a low-power mode that can be enabled by setting the EN pin low and configuring the device registers accordingly. Refer to the datasheet section 8.3 for more information.
  • The MC33FS6523CAER2 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and use case.
  • Yes, the MC33FS6523CAER2 can operate with a 3.3V power supply, but the device's performance and functionality may be affected. Refer to the datasheet section 6.1 for more information on power supply requirements.
  • NXP provides a troubleshooting guide in the application note AN12086, which includes steps for identifying and resolving common issues with the MC33FS6523CAER2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33FS6523CAER2 Overview

Use the download button to access the MC33FS6523CAER2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33F, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
