MC33HB2000AES - NXP

Description: Bipolar Motor Driver CMOS SPI 28-HVQFN (6x6) 5V ~ 28V 10A -40°C ~ 125°C (TA).

Download MC33HB2000AES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

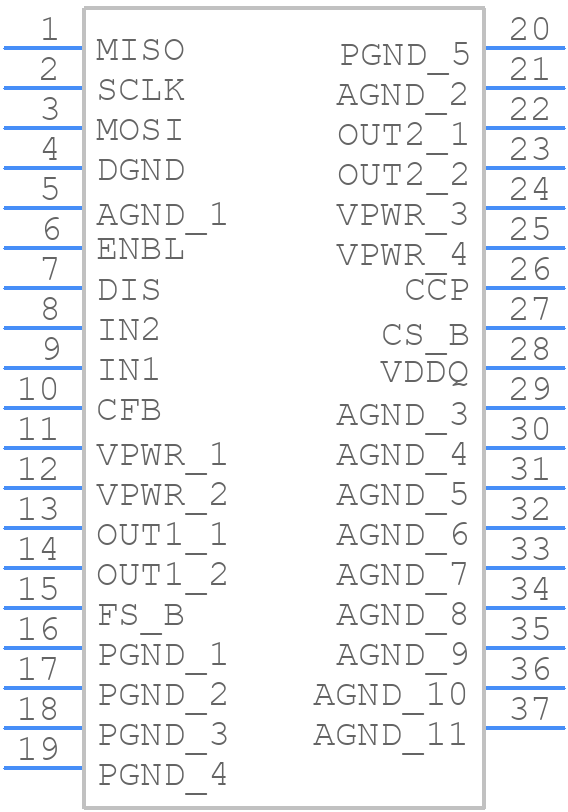

MC33HB2000AES - NXP - PCB symbol
click to zoom
PCB Footprints
MC33HB2000AES - NXP PCB footprint - Other - Other - SOT788_3(DD)
click to zoom
3D Models
MC33HB2000AES - NXP - 3D model - Other - SOT788_3(DD)
click to zoom

MC33HB2000AES Details

  • Manufacturer Part Number:

    MC33HB2000AES

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-28

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-02-24

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER
