MC33PF8100EAES - NXP

Description: Power Management IC 2.7V to 5.5V Automotive 56-Pin HVQFN EP Tray

Download MC33PF8100EAES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33PF8100EAES - NXP - PCB symbol
click to zoom
PCB Footprints

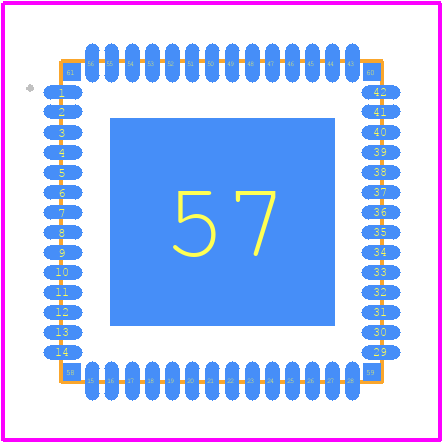

MC33PF8100EAES - NXP PCB footprint - Other - Other - HVQFN56 (Automotive grade)_1
click to zoom
3D Models
MC33PF8100EAES - NXP - 3D model - Other - HVQFN56 (Automotive grade)_1
click to zoom

MC33PF8100EAES Details

  • Manufacturer Part Number:

    MC33PF8100EAES

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HVQFN-56

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N56

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC56,.31SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.6V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    8 mm

MC33PF8100EAES Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN12255, which includes guidelines for component placement, routing, and thermal management.
  • Optimization techniques include selecting the right input and output capacitors, optimizing the inductor selection, and using the correct layout and routing techniques. NXP provides application notes and design guides to help with optimization.
  • The MC33PF8100EAES has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. NXP provides thermal management guidelines in the datasheet and application notes.
  • NXP provides troubleshooting guides and application notes that cover common issues and their solutions. Engineers can also use oscilloscopes and other diagnostic tools to identify and fix issues.
  • The MC33PF8100EAES is designed to meet EMI and EMC standards, but engineers must still follow best practices for PCB layout, component selection, and shielding to minimize EMI and ensure EMC compliance.
