MC34151DR2G - onsemi

Description: Efficient High Frequency Operation; Pin Out Equivalent to DS0026 and MMH0026; Two Independent Channels with 1.5 A Totem Pole Output; CMOS/LSTTL Compatible Inputs with Hysteresis; Output Rise and Fall Times of 15 ns with 1000 pF Load; Undervoltage Lockout with Hysteresis; Low Standby Current; Enhanced System Performance with Common Switching Regulator Control ICs

Download MC34151DR2G Model
Schematic

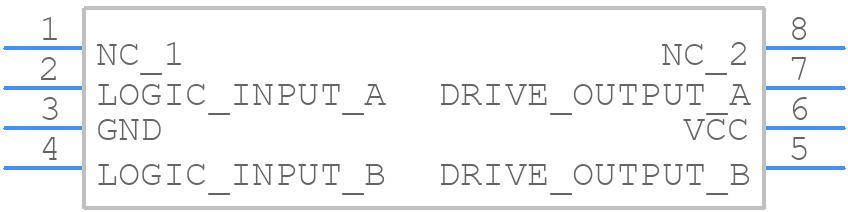

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC34151DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
MC34151DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8
click to zoom

MC34151DR2G Details

  • Manufacturer Part Number:

    MC34151DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    3.9 mm
