MC34PF1550A1EP - NXP

Description: Embedded Systems, Low-Power IoT, Mobile/Wearable Devices PMIC 40-HVQFN (5x5)

Download MC34PF1550A1EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

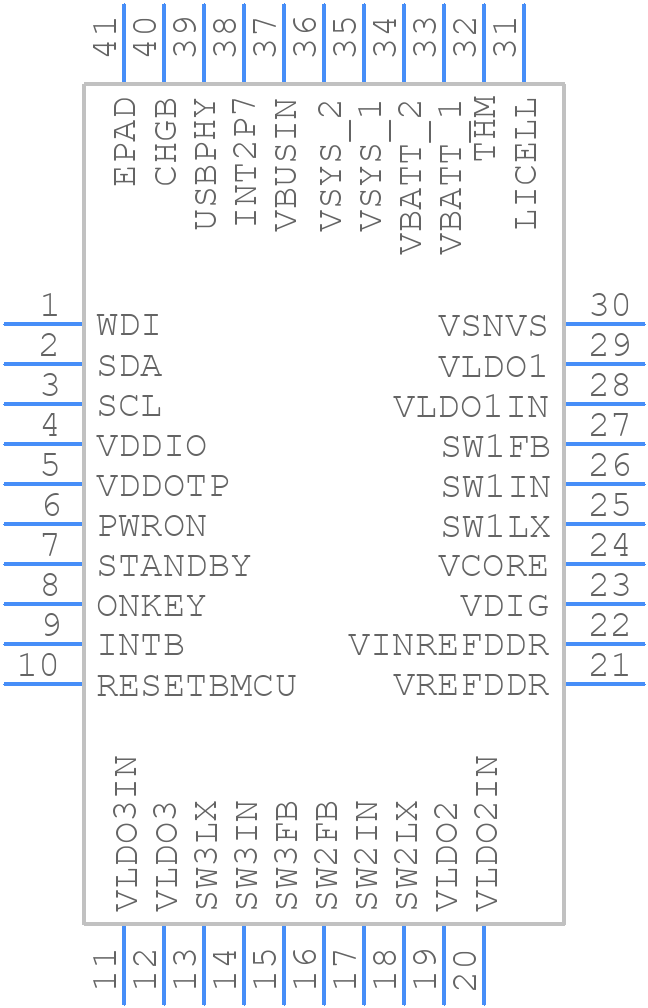

MC34PF1550A1EP - NXP - PCB symbol
click to zoom
PCB Footprints
MC34PF1550A1EP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT1369-4
click to zoom
3D Models
MC34PF1550A1EP - NXP - 3D model - Quad Flat No-Lead - SOT1369-4
click to zoom

MC34PF1550A1EP Details

  • Manufacturer Part Number:

    MC34PF1550A1EP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MC34PF1550A1EP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN5071, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC34PF1550A1EP has a programmable output voltage feature. To configure the device for different output voltage settings, use the I2C interface to write the desired voltage value to the VOUT register. Refer to the datasheet section 10.3.1 for more information.
  • Although the datasheet specifies a maximum input voltage of 5.5V, NXP recommends limiting the input voltage to 5.25V to ensure reliable operation and prevent damage to the device.
  • The MC34PF1550A1EP has built-in OCP and SCP features. To implement these features, use the I2C interface to configure the OCP and SCP thresholds, and connect the OCP and SCP pins to the appropriate external components. Refer to the datasheet section 10.3.2 for more information.
  • NXP provides a thermal derating curve in the datasheet, which shows the maximum allowed power dissipation versus ambient temperature. This curve helps designers to ensure the device operates within safe temperature limits and prevents overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34PF1550A1EP Overview

Use the download button to access the MC34PF1550A1EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC34P, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
