MC74VHC139DR2G-Q - onsemi

Description: Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C; High Speed: tPD = 5.0ns (Typ) at VCC = 5V; Designed for 2V to 5.5V Operating Range; Chip Complexity: 100 FETs or 25 Equivalent Gates; Latchup Performance Exceeds 300mA; Pin and Function Compatible with Other Standard Logic Families; ESD Performance: HBM > 2000V; Machine Model > 200V; High Noise Immunity: VNIH = VNIL = 28% VCC; Power Down Protection Provided on Inputs; Balanced Propagation Delays; Low Noise: VOLP = 0.8 V (Max)

Download MC74VHC139DR2G-Q Model

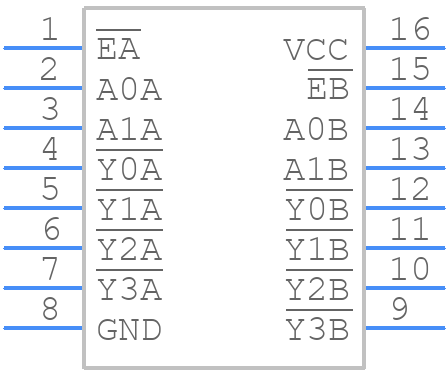

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74VHC139DR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom
3D Models
MC74VHC139DR2G-Q - onsemi  - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom

MC74VHC139DR2G-Q Details

  • Manufacturer Part Number:

    MC74VHC139DR2G-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Family:

    AHC/VHC/H/U/V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    10.5 ns

  • Propagation Delay (tpd):

    16.5 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74VHC139DR2G-Q Overview

Use the download button to access the MC74VHC139DR2G-Q schematic symbol, PCB footprint, and 3D model.
