MC74VHC1G126DBVT1G - onsemi

Description: Low Power Dissipation: ICC = 1µA (Max) at T A = 25°C; Balanced Propagation Delays; Power Down Protection Provided on Inputs; High Speed: tPD = 3.5ns (Typ) at VCC = 5V; TTL-Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V; CMOS-Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @Load; Designed for 2.0 V to 5.5 V VCC Operation; Pin and Function Compatible with Other Standard Logic Families; Chip Complexity: FETs = ≤ 100; Pb-Free Packages are Available

Download MC74VHC1G126DBVT1G Model

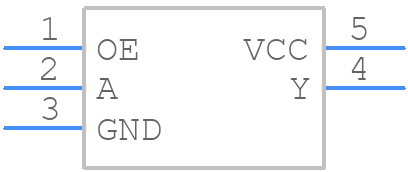

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74VHC1G126DBVT1G - onsemi PCB footprint - Other - Other - MC74VHC1G126DBVT1G-1
click to zoom
3D Models
MC74VHC1G126DBVT1G - onsemi  - 3D model - Other - MC74VHC1G126DBVT1G-1
click to zoom

MC74VHC1G126DBVT1G Details

  • Manufacturer Part Number:

    MC74VHC1G126DBVT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74A-5 3.00x1.50x0.95, 0.95P

  • Package Description:

    SC-74A, 5 PIN

  • Manufacturer Package Code:

    318BQ

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2018-11-15

  • Manufacturer:

    onsemi

  • YTEOL:

    5.65

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    10.5 ns

  • Propagation Delay (tpd):

    16 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    2 V

  • Width:

    1.5 mm

MC74VHC1G126DBVT1G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74VHC1G126DBVT1G is 2.0V to 5.5V.
  • To ensure the output voltage swing is sufficient, make sure the output load impedance is within the recommended range (typically 1kΩ to 10kΩ) and the supply voltage is within the recommended operating range.
  • The maximum frequency of operation for the MC74VHC1G126DBVT1G is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper operation, power-up and power-down sequencing should be controlled to prevent voltage overshoots and undershoots. A recommended approach is to power up the device with a slow ramp-up of the supply voltage (typically 1-10 ms) and power down with a slow ramp-down (typically 1-10 ms).
  • For optimal performance, it is recommended to follow good PCB layout and routing practices, such as keeping signal traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes.
