MC74VHC1G135DBVT1G - onsemi

Description: Power Down Protection Provided on Inputs; Pin and Function Compatible with Other Standard Logic Families; Low Internal Power Dissipation: ICC = 1µA (Max) at TA = 25°C; High Speed: tPD = 4.9ns (Typ) at VCC = 5V; Chip Complexity: FETs = <100; Pb-Free Packages are Available; Designed for 2.0 V to 5.5 V Vcc Operation Wide Operating Vcc Range

Download MC74VHC1G135DBVT1G Model

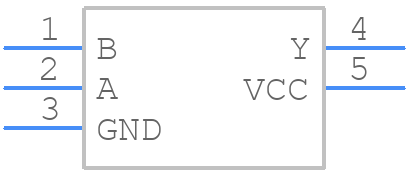

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74VHC1G135DBVT1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SC−74A
click to zoom
3D Models
MC74VHC1G135DBVT1G - onsemi  - 3D model - SOT23 (5-Pin) - SC−74A
click to zoom

MC74VHC1G135DBVT1G Details

  • Manufacturer Part Number:

    MC74VHC1G135DBVT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74A-5 3.00x1.50x0.95, 0.95P

  • Manufacturer Package Code:

    318BQ

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2018-11-15

  • Manufacturer:

    onsemi

  • YTEOL:

    5.65

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.08 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP5,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    19.6 ns

  • Propagation Delay (tpd):

    19.6 ns

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

MC74VHC1G135DBVT1G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74VHC1G135DBVT1G is 2.0V to 5.5V.
  • Yes, the MC74VHC1G135DBVT1G is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The maximum clock frequency that the MC74VHC1G135DBVT1G can handle is 120 MHz.
  • Yes, the MC74VHC1G135DBVT1G has built-in electrostatic discharge (ESD) protection, which helps protect the device from damage caused by static electricity.
  • The MC74VHC1G135DBVT1G comes in a 5-pin SOT23 package.
