MC74VHC1GT00DBVT1G - onsemi

Description: High Speed: tPD = 3.1ns (Typ) at VCC = 5V; CMOS-Compatible Outputs: VOH > 0.8VCC ; VOL < 0.1VCC @Load; Power Down Protection Provided on Inputs and Outputs; Pin and Function Compatible with Other Standard Logic Families; Low Power Dissipation: ICC = 2m A (Max) at TA = 25°C; Balanced Propagation Delays; TTL-Compatible Inputs: VIL = 0.8V; VIH = 2.0V; Pb-Free Packages are Available; Designed for 2.0 V to 5.5 V VCC Operation

Download MC74VHC1GT00DBVT1G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC74VHC1GT00DBVT1G model

Email notifications will be applied after download.

Send part feedback

Symbol

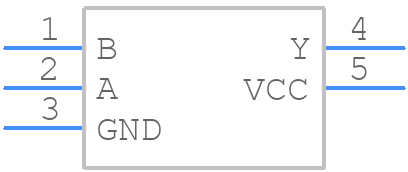

MC74VHC1GT00DBVT1G - onsemi - PCB symbol

PCB Footprints

MC74VHC1GT00DBVT1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SC−74A

3D Models

MC74VHC1GT00DBVT1G - onsemi - 3D model - SOT23 (5-Pin) - SC−74A

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74VHC1GT00DBVT1G
Part Number MC74VHC1GT00DBVT1G
Manufacturer onsemi
Pin Count 5
Part Category Integrated Circuit
Package Category SOT23 (5-Pin)
Footprint Name SOT23 (5-Pin) - SC−74A
Released Date Dec 6, 2020
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

MC74VHC1GT00DBVT1G Details

Manufacturer Part Number:
MC74VHC1GT00DBVT1G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SC-74A-5 3.00x1.50x0.95, 0.95P
Manufacturer Package Code:
318BQ
Country Of Origin:
Mainland China
HTS Code:
8542.39.00.60
Factory Lead Time:
53 Weeks, 1 Day
Date Of Intro:
2018-11-15
Manufacturer:
onsemi
YTEOL:
8
Logic IC Type:
NAND GATE
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Matte Tin (Sn) - annealed
Time@Peak Reflow Temperature-Max (s):
30

MC74VHC1GT00DBVT1G Frequently Asked Questions (FAQs)

The recommended operating voltage range for the MC74VHC1GT00DBVT1G is 2.0V to 5.5V.
To minimize the effect of input capacitance, it is recommended to use a series resistor (Rs) between the input signal and the buffer input. The value of Rs should be chosen to limit the input current to less than 20mA.
The maximum frequency of operation for the MC74VHC1GT00DBVT1G is 200MHz.
It is recommended to power up the VCC pin before applying any input signals to the device. Also, ensure that the input signals are stable before powering up the VCC pin.
The maximum output current that the MC74VHC1GT00DBVT1G can sink or source is 24mA.
