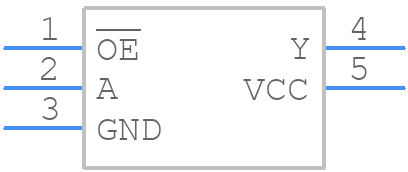

MC74VHC1GT125DBVT1G - onsemi

MC74VHC1GT125DBVT1G Details

• Manufacturer Part Number:

  MC74VHC1GT125DBVT1G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SC-74A-5 3.00x1.50x0.95, 0.95P

• Manufacturer Package Code:

  318BQ

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  53 Weeks, 1 Day

• Date Of Intro:

  2018-11-15

• Manufacturer:

  onsemi

• YTEOL:

  5.65

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  AHC/VHC/H/U/V

• JESD-30 Code:

  R-PDSO-G5

• JESD-609 Code:

  e3

• Length:

  3 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.008 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSOP5/6,.11,37

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  10.5 ns

• Propagation Delay (tpd):

  16 ns

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.5 mm
