MC74VHCT125ADTR2G - onsemi

Description: TTL-Compatible Inputs: VIL = 0.8V; VIH = 2.0V; Low Noise: VOLP = 0.8V (Max); Designed for 2V to 5.5V Operating Range; High Speed: tPD = 3.8ns (Typ) at VCC = 5V; Pin and Function Compatible with Other Standard Logic Families; Power Down Protection Provided on Inputs; Balanced Propagation Delays; Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C; Chip Complexity: 72 FETs or 18 Equivalent Gates; Latchup Performance Exceeds 300mA; ESD Performance: HBM > 2000V; Machine Model > 200V; Pb-Free Packages are Availa

Download MC74VHCT125ADTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

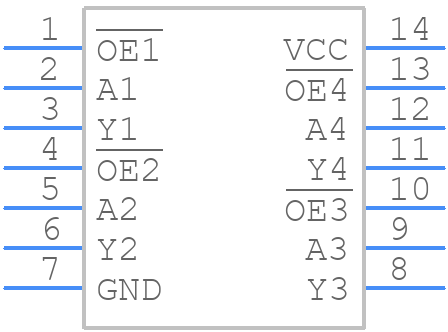

MC74VHCT125ADTR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74VHCT125ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2024
click to zoom
3D Models
MC74VHCT125ADTR2G - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2024
click to zoom

MC74VHCT125ADTR2G Details

  • Manufacturer Part Number:

    MC74VHCT125ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Logic IC Type:

    BUFFER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

MC74VHCT125ADTR2G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74VHCT125ADTR2G is 120 MHz.
  • The input voltage range for the MC74VHCT125ADTR2G is 4.5V to 5.5V.
  • The output current capability of the MC74VHCT125ADTR2G is ±8mA.
  • Yes, the MC74VHCT125ADTR2G is 3V and 5V tolerant, making it suitable for use in mixed-voltage systems.
  • The propagation delay of the MC74VHCT125ADTR2G is typically 3.5ns.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74VHCT125ADTR2G Overview

Use the download button to access the MC74VHCT125ADTR2G schematic symbol, PCB footprint, and 3D model.
