MCH6341-TL-W - onsemi

Description: Low ON-resistance; 4V drive; ESD diode-Protected gate; RoHS Compliant

Download MCH6341-TL-W Model

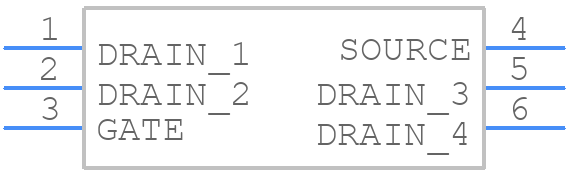

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCH6341-TL-W - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - MCH6341-TL-W
click to zoom
3D Models
MCH6341-TL-W - onsemi  - 3D model - SO Transistor Flat Lead - MCH6341-TL-W
click to zoom

MCH6341-TL-W Details

  • Manufacturer Part Number:

    MCH6341-TL-W

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC 88FL / MCPH6

  • Manufacturer Package Code:

    419AS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    5 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    30

MCH6341-TL-W Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • A reflow soldering profile with a peak temperature of 240°C to 250°C and a dwell time of 30-60 seconds is recommended. Avoid using wave soldering or hand soldering, as this can cause damage to the device.
  • Handle the device in an ESD-controlled environment, and use ESD-protective packaging and handling materials. Ground yourself and any equipment before handling the device, and avoid touching the device's pins or leads.
  • Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, extreme temperatures, or physical stress. Handle the device by the body, not the leads, to prevent damage.
