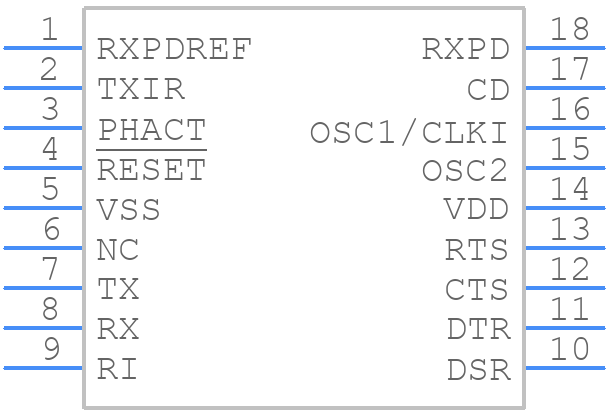

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP2140-I/SO
- Part Number MCP2140-I/SO
- Manufacturer Microchip
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1030X265-18N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP2140-I/SO Details
-
Manufacturer Part Number:
MCP2140-I/SO
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Package Description:
0.300 INCH, PLASTIC, MS-013, SOIC-18
-
Pin Count:
18
-
Manufacturer Package Code:
SOIC-18
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
11 Weeks
MCP2140-I/SO Frequently Asked Questions (FAQs)
-
The maximum data rate that can be achieved with the MCP2140 is 115.2 kbps, as specified in the IrDA 1.4 standard.
-
The MCP2140 has built-in error detection and correction mechanisms, including checksum calculation and verification, to ensure reliable data transfer. It also provides an error signal to the microcontroller in case of errors.
-
While the MCP2140 is primarily designed for IrDA applications, it can also be used in other infrared communication applications, such as remote control systems or IrDA-like protocols, with some modifications to the firmware and hardware.
-
The typical current consumption of the MCP2140 is around 10 mA, but this can vary depending on the operating mode, data rate, and other factors. Refer to the datasheet for more detailed information on power consumption.
-
To implement a reliable IrDA connection with the MCP2140, ensure that the infrared transceiver is properly aligned and configured, use a suitable IrDA protocol stack, and implement error handling and retry mechanisms in the firmware.
Trust Checks
System Verified
MCP2140-I/SO Overview
Use the download button to access the MCP2140-I/SO schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP21,
or try a keyword search, such as Other Telecom ICs
