MCP2155-I/SO - Microchip

Description: IrDA protocol handler plus bit encoding

Download MCP2155-I/SO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

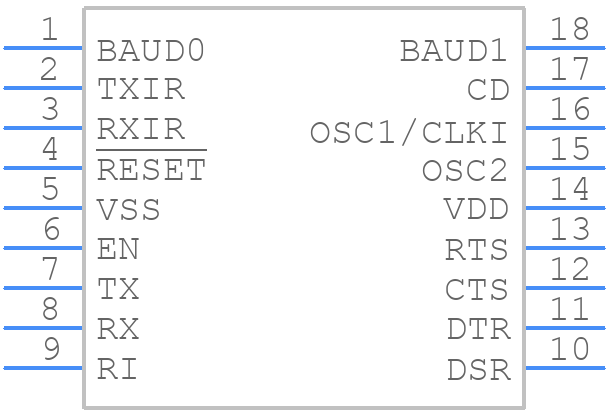

MCP2155-I/SO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2155-I/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - K04-051 18-Lead Plastic Small Outline (SO) - Wide 300 mil
click to zoom
3D Models
MCP2155-I/SO - Microchip - 3D model - Small Outline Packages - K04-051 18-Lead Plastic Small Outline (SO) - Wide 300 mil
click to zoom

MCP2155-I/SO Details

  • Manufacturer Part Number:

    MCP2155-I/SO

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, PLASTIC, SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    SOIC-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.53 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.49 mm

MCP2155-I/SO Frequently Asked Questions (FAQs)

  • The MCP2155 can transmit IR signals up to 56 kHz, but the maximum frequency depends on the specific application and the IR receiver being used. It's recommended to check the IR receiver's datasheet for its maximum frequency rating.
  • The MCP2155 is a flexible IR encoder that can be configured for various IR protocols using its 16-bit configuration register. The specific configuration depends on the protocol being used, such as Philips RC5, NEC, or Sony IR. Refer to the datasheet and application notes for more information on configuring the device for a specific protocol.
  • The MCP2155 operates from a single supply voltage of 2.7V to 5.5V, making it suitable for a wide range of applications. However, it's recommended to operate the device within the specified voltage range to ensure reliable operation and to prevent damage to the device.
  • Yes, the MCP2155 can be used in both 3.3V and 5V systems. The device is designed to operate from a single supply voltage of 2.7V to 5.5V, making it compatible with most digital systems.
  • The MCP2155 can be interfaced with a microcontroller using a 4-wire SPI interface. The device requires a clock signal, chip select signal, data input signal, and data output signal to operate. The microcontroller can be used to configure the MCP2155, transmit IR data, and receive IR data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2155-I/SO Overview

Use the download button to access the MCP2155-I/SO schematic symbol, PCB footprint, and 3D model.
