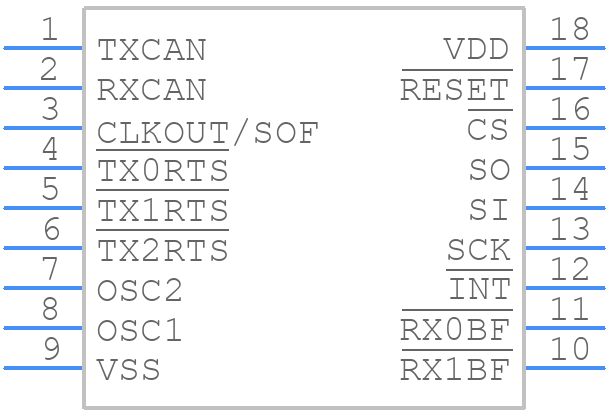

MCP2515-I/SO - Microchip

MCP2515-I/SO Details

• Manufacturer Part Number:

  MCP2515-I/SO

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  SOIC-18

• Pin Count:

  18

• Manufacturer Package Code:

  SOIC-18

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  5 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Boundary Scan:

  NO

• Bus Compatibility:

  SPI

• Clock Frequency-Max:

  40 MHz

• Communication Protocol:

  SYNC; BIT ;BYTE

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.125 MBps

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  11.55 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Serial I/Os:

  1

• Number of Terminals:

  18

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP18,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• RAM (words):

  14

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
