MCP33131D-05-E/MS - Microchip

Description: MICROCHIP - MCP33131D-05-E/MS. - ADC, 16BIT, -40 TO 125DEG C

Download MCP33131D-05-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

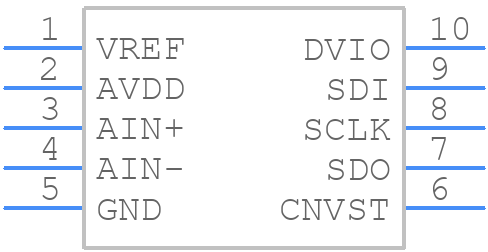

Symbol
MCP33131D-05-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP33131D-05-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP33131D-05-E/MS
click to zoom
3D Models
MCP33131D-05-E/MS - Microchip - 3D model - Small Outline Packages - MCP33131D-05-E/MS
click to zoom

MCP33131D-05-E/MS Details

  • Manufacturer Part Number:

    MCP33131D-05-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2018-11-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -5.1 V

  • Conversion Time-Max:

    1.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00915%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Sample Rate:

    0.5 MHz

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP33131D-05-E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP33131D-05-E/MS involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate measurements, it's essential to follow proper PCB layout guidelines, use a stable reference voltage, and minimize noise and interference. Additionally, calibrate the device using the built-in calibration registers, and use the internal offset and gain calibration features.
  • The maximum sampling rate of the MCP33131D-05-E/MS is 1 Msps (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol used.
  • Yes, the MCP33131D-05-E/MS can be used in a multi-channel application. The device has a single ADC core, but it can be used with multiple analog input channels using an external multiplexer or a dedicated analog front-end (AFE) IC.
  • The MCP33131D-05-E/MS can be interfaced with a microcontroller using the SPI (Serial Peripheral Interface) or I²C (Inter-Integrated Circuit) interface. The device's digital output can be connected to the microcontroller's SPI or I²C pins, and the microcontroller can control the ADC's operation and read the conversion results.
