MCP3913BA1-E/SS - Microchip

Description: Analog Front End - AFE 6-Channel 3V Analog AFE with SPI

Download MCP3913BA1-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

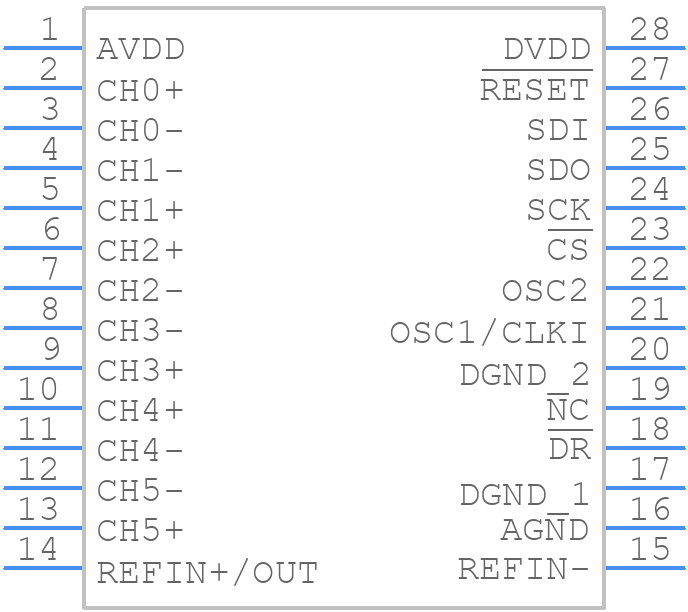

MCP3913BA1-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3913BA1-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-lead Plastic Shrink Outline (SS) -5.3 mm Body (SSOP)
click to zoom
3D Models
MCP3913BA1-E/SS - Microchip - 3D model - Small Outline Packages - 28-lead Plastic Shrink Outline (SS) -5.3 mm Body (SSOP)
click to zoom

MCP3913BA1-E/SS Details

  • Manufacturer Part Number:

    MCP3913BA1-E/SS

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Philippines, Thailand

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Converter Type:

    ADC, DELTA-SIGMA

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3913BA1-E/SS Overview

Use the download button to access the MCP3913BA1-E/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39, or try a keyword search, such as Analog to Digital Converters
