MCP39F511AT-E/MQ - Microchip

Description: Current & Power Monitors & Regulators Single-Phase, Dual-Mode(AC/DC) Power-Monitoring IC with Calculation and Energy Accumulation

Download MCP39F511AT-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

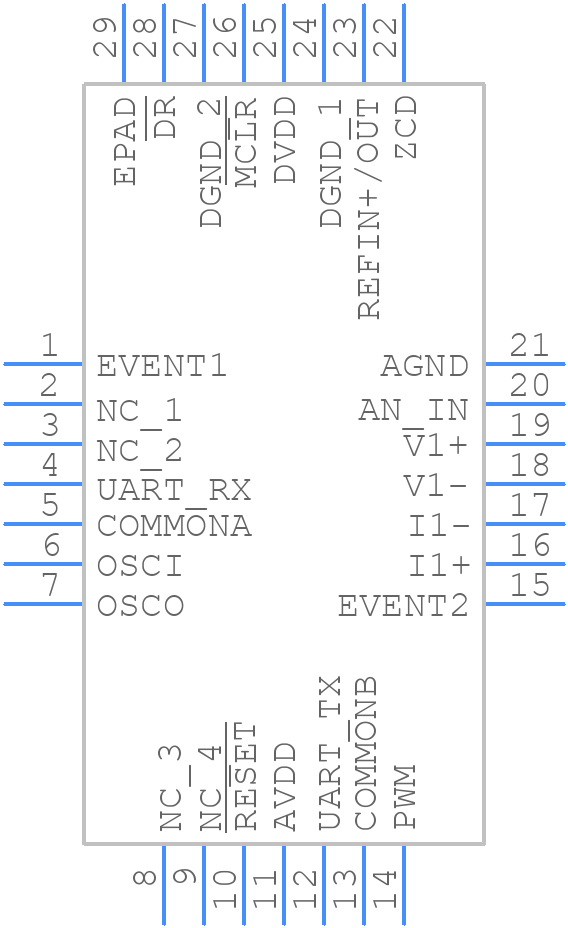

MCP39F511AT-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP39F511AT-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom
3D Models
MCP39F511AT-E/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom

MCP39F511AT-E/MQ Details

  • Manufacturer Part Number:

    MCP39F511AT-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP39F511AT-E/MQ Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the VREG pin is 50 mA. This is not explicitly stated in the datasheet, but it's a common question among engineers.
  • The configuration of the MCP39F511AT-E/MQ depends on the specific application. Engineers can refer to the application notes and design guides provided by Microchip Technology Inc for guidance on configuring the device for their specific use case.
  • The internal oscillator of the MCP39F511AT-E/MQ has an accuracy of ±2% over the entire operating temperature range. This information is not explicitly stated in the datasheet, but it's a common question among engineers.
  • The MCP39F511AT-E/MQ is rated for operation up to 125°C. However, engineers should ensure that the device is properly heat-sinked and that the operating conditions are within the specified limits to ensure reliable operation.
  • Engineers can use the debugging tools and software development kits (SDKs) provided by Microchip Technology Inc to troubleshoot issues with the MCP39F511AT-E/MQ. Additionally, they can refer to the device's datasheet and application notes for guidance on troubleshooting common issues.
