- Part Number MCQ16N03-TP
- Manufacturer MCC
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP-8(H=1.75mm)
- Released Date Jan 6, 2024
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCQ16N03-TP Details
-
Manufacturer Part Number:
MCQ16N03-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
6
-
DS Breakdown Voltage-Min:
30 V
-
Drain Current-Max (ID):
16 A
-
Drain-source On Resistance-Max:
0.016 Ω
-
JESD-609 Code:
e3
MCQ16N03-TP Frequently Asked Questions (FAQs)
-
The maximum junction temperature of MCQ16N03-TP is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
-
While MCQ16N03-TP is a power MOSFET, it's not optimized for high-frequency switching applications. The device has a relatively high gate charge and output capacitance, which may lead to increased switching losses and reduced efficiency at high frequencies. For high-frequency applications, consider using a MOSFET with lower gate charge and output capacitance.
-
To ensure the reliability of MCQ16N03-TP in a high-temperature environment, follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider derating the device's power handling capability based on the ambient temperature to prevent overheating.
-
While MCQ16N03-TP is a power MOSFET, it's not optimized for linear mode operation. The device has a relatively high threshold voltage and may not provide the required linearity and stability in linear mode. For linear mode operation, consider using a MOSFET with a lower threshold voltage and optimized for linear operation.
-
The recommended gate drive voltage for MCQ16N03-TP is between 4.5V and 10V. However, the optimal gate drive voltage may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information on gate drive requirements.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCQ16N03-TP Overview

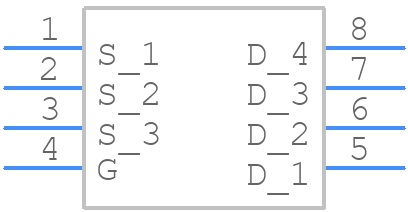

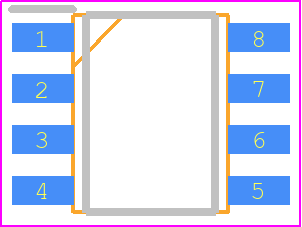

Use the download button to access the MCQ16N03-TP schematic symbol, PCB footprint, and 3D model.
