MCT5211SR2M - onsemi

Description: IEC60747-5-2 approved (ordering option V); High CTRCE(SAT) comparable to Darlingtons; Underwriters Laboratory (UL) recognized, file #E90700, volume 2; Data rates up to 150kbits/s (NRZ); High common mode transient rejection 5kV/µs; CTR guaranteed 0°C to 70°C

Download MCT5211SR2M Model

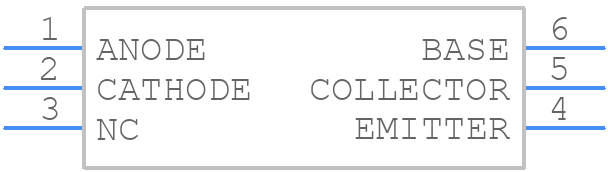

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCT5211SR2M - onsemi PCB footprint - Other - Other - PDIP6 8.51x6.35, 2.54P  CASE 646BY ISSUE A
click to zoom
3D Models
MCT5211SR2M - onsemi  - 3D model - Other - PDIP6 8.51x6.35, 2.54P  CASE 646BY ISSUE A
click to zoom

MCT5211SR2M Details

  • Manufacturer Part Number:

    MCT5211SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    75%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.00002 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT5211SR2M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a heat sink.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to keep the device temperature below the maximum TJ. Monitor the device's thermal performance and adjust the system design as needed.
  • The MCT5211SR2M has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • Yes, the MCT5211SR2M is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is manufactured using a process that is compliant with IATF 16949. However, additional testing and validation may be required for specific applications.
  • Use a systematic approach to troubleshoot issues. Check the device's pinout and connections, ensure proper power supply and decoupling, and verify that the device is operated within its recommended operating conditions. Use oscilloscopes or logic analyzers to monitor the device's signals and identify potential issues.
