Part Image

MCT61SD - onsemi

Description: VDE approved for IEC60747-5-2; Two isolated channels per package; Choice of 3 current transfer ratios; Underwriters Laboratory (U.L.) recognized File E90700; Two packages fit into a 16 lead DIP socket

Download MCT61SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

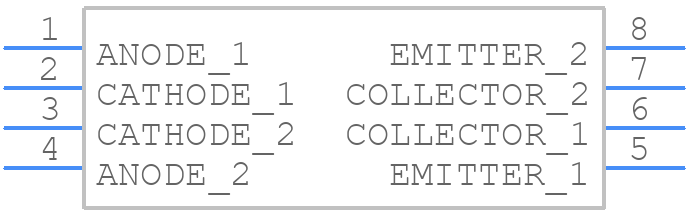

Symbol
MCT61SD - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT61SD - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P-2021
click to zoom
3D Models
MCT61SD - onsemi - 3D model - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P-2021
click to zoom

MCT61SD Details

  • Manufacturer Part Number:

    MCT61SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AF

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.03 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000024 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT61SD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MCT61SD is 4.5V to 5.5V, with a typical operating voltage of 5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the PCB or heat sink.
  • The maximum allowable current through the MCT61SD's output pins is 20mA per pin, with a total device current limit of 100mA.
  • The MCT61SD can be interfaced with a microcontroller or other digital logic using standard CMOS logic levels, with a recommended pull-up resistor value of 1kΩ to 10kΩ.
  • The internal pull-up resistors on the MCT61SD are used to pull the output pins high when the device is in a high-impedance state, and can be disabled by connecting an external pull-down resistor to the output pin.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCT61SD Overview

Use the download button to access the MCT61SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT61, or try a keyword search, such as Optocoupler
