Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, a thermal pad on the bottom of the package should be connected to the ground plane to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within the recommended temperature range.
The high current rating of the MCT8315Z0HRRYR requires careful PCB design consideration to ensure reliable operation. This includes using thick copper traces, wide power planes, and multiple vias to reduce resistance and inductance. Additionally, consider using a PCB with a high current-carrying capacity and follow the recommended PCB layout guidelines.
To troubleshoot issues related to the internal voltage regulator, start by verifying the input voltage and ensuring it's within the recommended range. Check the output voltage and current to ensure they're within the specified limits. If issues persist, consult the datasheet and application notes for guidance on debugging and troubleshooting techniques.
To minimize EMI and RFI, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, consider using a metal shield or enclosure to contain electromagnetic radiation. Consult the datasheet and application notes for specific guidance on EMI and RFI mitigation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCT8315Z0HRRYR Overview

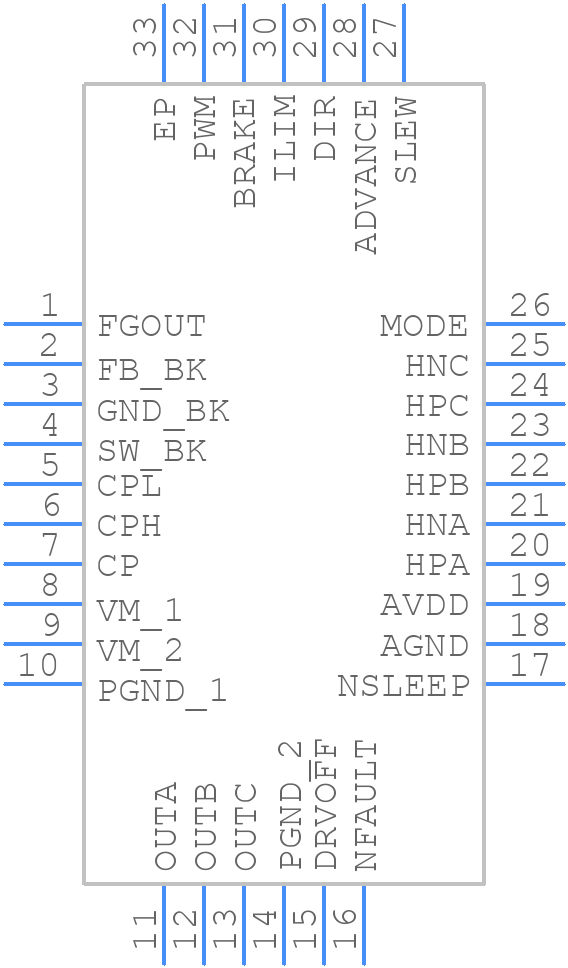

Use the download button to access the MCT8315Z0HRRYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT83,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
