Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, as excessive temperatures can affect performance and reliability. Use thermal pads or heat sinks if necessary, and ensure good airflow around the device.
While the MCT8316A1VQRGFRQ1 can operate with input voltages between 1.62V and 1.98V, using a different input voltage may affect the device's performance, power consumption, and accuracy. Consult the datasheet for specific voltage-dependent characteristics and consider the impact on your design.
The POR and BOR features are designed to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that your design provides a stable power supply, and consider adding external reset circuitry if necessary. Also, be aware of the device's reset timing and ensure that your system can handle the reset period.
When using the MCT8316A1VQRGFRQ1 in a high-reliability or safety-critical application, consider the device's fault tolerance, error detection, and correction mechanisms. Also, ensure that your design follows relevant industry standards and guidelines, such as IEC 61508 or ISO 26262, and that you have a thorough understanding of the device's failure modes and effects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCT8316A1VQRGFRQ1 Overview

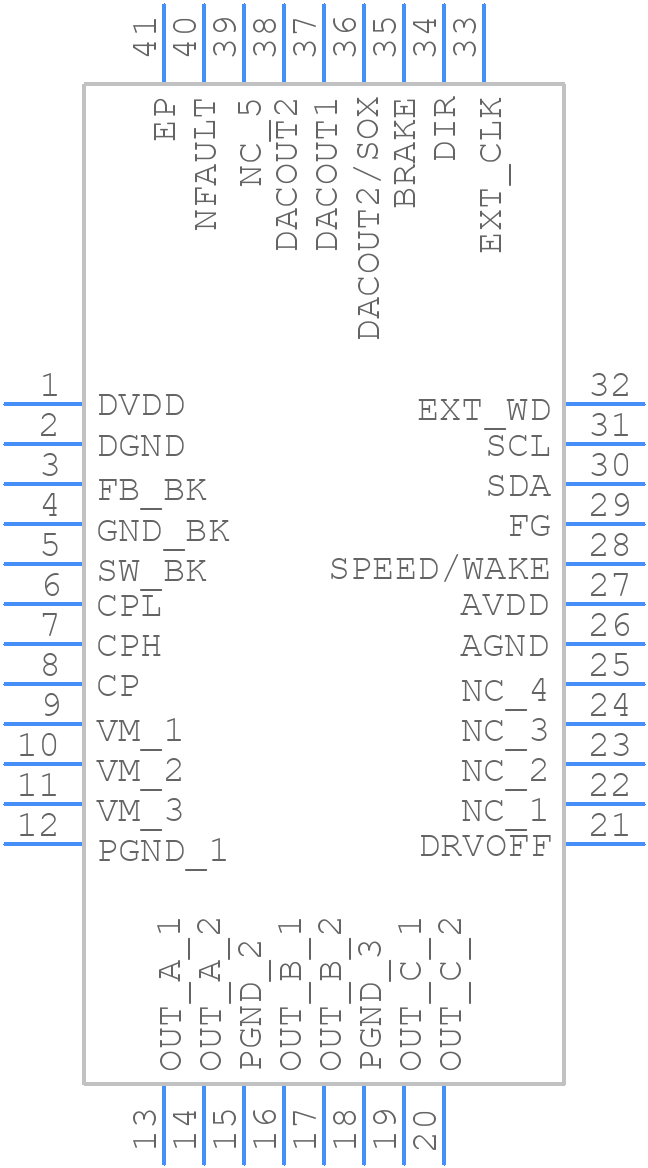

Use the download button to access the MCT8316A1VQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT83,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
