Texas Instruments recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
The internal voltage regulator has a limited current capability and may not be suitable for high-current applications. It's recommended to use an external voltage regulator for applications that require higher currents or tighter voltage regulation.
To troubleshoot POR issues, check the power supply voltage, ensure that the voltage is within the specified range, and verify that the POR pin is properly connected. Also, check for any noise or glitches on the power supply lines that may be causing the POR circuitry to malfunction.
For high-reliability or safety-critical applications, consider using redundant systems, error detection and correction mechanisms, and fault-tolerant design techniques. Additionally, ensure that the device is operated within its specified parameters, and follow Texas Instruments' guidelines for designing reliable systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCT8316Z0RQRGFRQ1 Overview

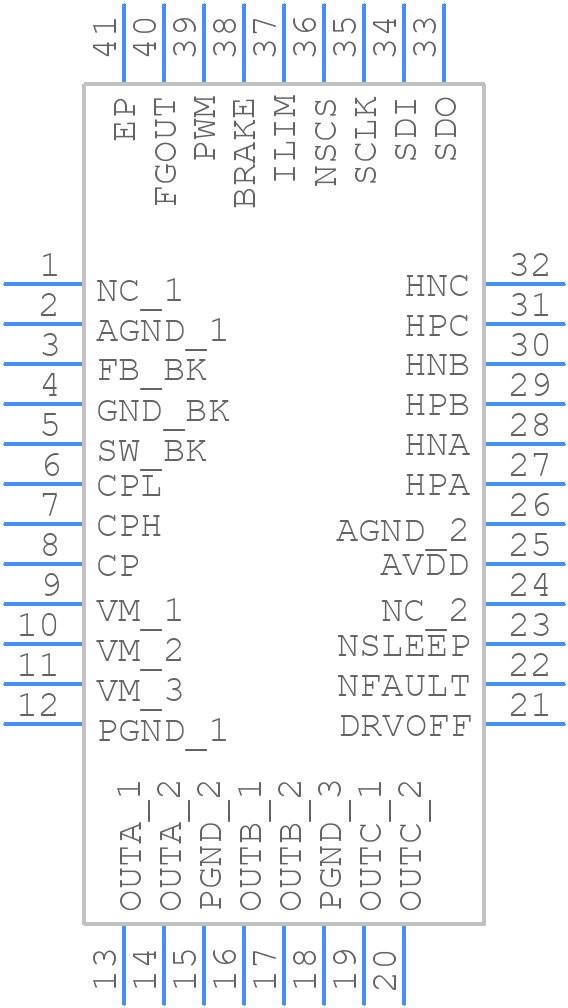

Use the download button to access the MCT8316Z0RQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT83,
or try a keyword search, such as Motion Control Electronics
