MCT8316Z0RRGFR - Texas Instruments

Description: Multiphase Motor Driver NMOS SPI 40-VQFN (7x5)

Download MCT8316Z0RRGFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

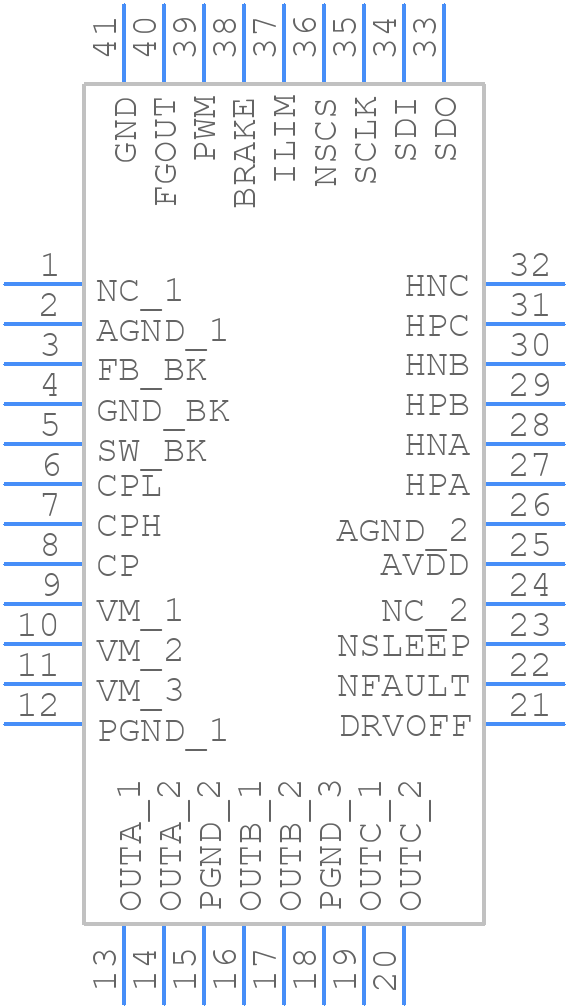

MCT8316Z0RRGFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MCT8316Z0RRGFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGF0040E
click to zoom
3D Models
MCT8316Z0RRGFR - Texas Instruments - 3D model - Quad Flat No-Lead - RGF0040E
click to zoom

MCT8316Z0RRGFR Details

  • Manufacturer Part Number:

    MCT8316Z0RRGFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    27 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MCT8316Z0RRGFR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 10 vias under the device to connect the thermal pad to the ground plane.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, consider using a thermal protection circuit to prevent overheating.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Texas Instruments recommends using a human-body model (HBM) ESD protection circuit with a minimum of 2kV rating to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • To prevent damage or malfunction, it's recommended to power up the device in the following sequence: VCC, then EN, and finally the input signals. This ensures that the internal biasing and voltage regulators are properly initialized.
