Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal interface materials, such as thermal tape or thermal grease, to improve heat transfer between the device and the heat sink.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
The MCT8316Z0TQRGFRQ1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, such as wrist straps, mats, and bags, to prevent damage to the device.
The recommended clock frequency for the MCT8316Z0TQRGFRQ1 is up to 100 MHz. However, the actual clock frequency may vary depending on the specific application and system requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCT8316Z0TQRGFRQ1 Overview

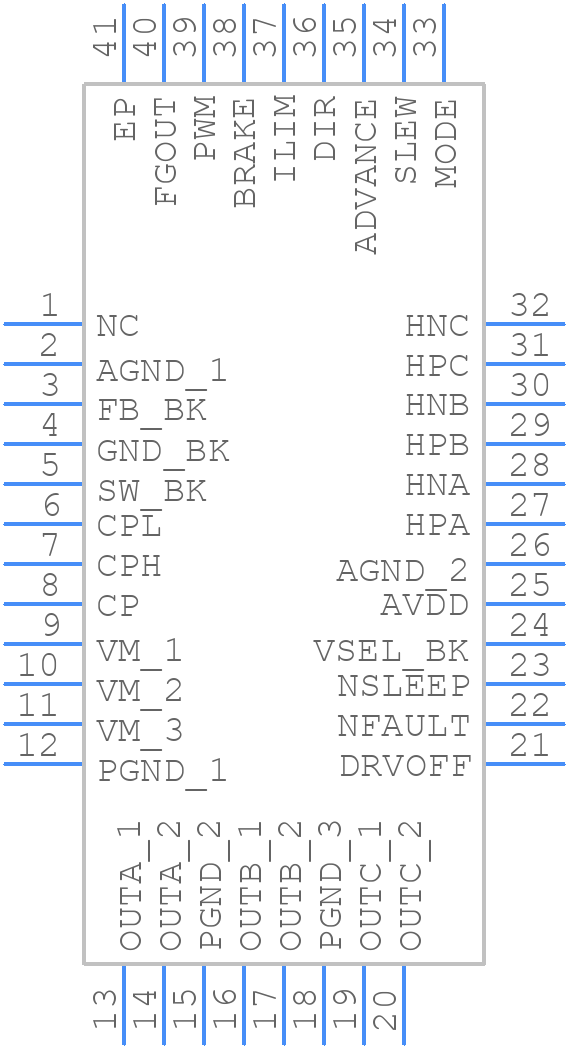

Use the download button to access the MCT8316Z0TQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCT83,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
