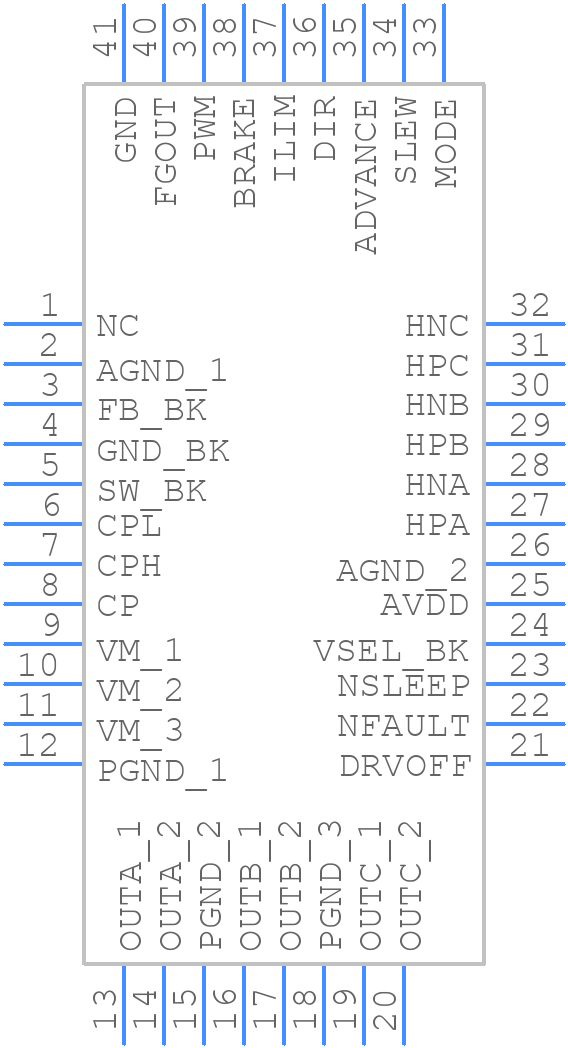

MCT8316Z0TRGFR - Texas Instruments

MCT8316Z0TRGFR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
• How do I ensure reliable operation across the entire operating temperature range?
  Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients. Additionally, consider using thermal protection circuits or thermal sensors to monitor the device temperature.
• What are the implications of exceeding the maximum junction temperature?
  Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
• How do I handle ESD protection for the MCT8316Z0TRGFR?
  Implement ESD protection measures such as using ESD-protected IC sockets, handling the device by the body or pins, and using anti-static wrist straps or mats. Additionally, consider using ESD protection diodes or TVS diodes on the input and output pins.
• What are the considerations for PCB assembly and rework?
  Use a reflow soldering process with a peak temperature of 260°C or less. Avoid using wave soldering or hand soldering, as it can damage the device. For rework, use a hot air rework station with a temperature-controlled heat source and a vacuum pickup tool to minimize thermal stress.
