Part Image

MCT9001 - onsemi

Description: Two packages fit into a 16 lead DIP pocket; VDE approved for IEC60747-5-2; Two isolated channels per package; Underwriters Laboratory (U.L.) recognized File E90700

Download MCT9001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

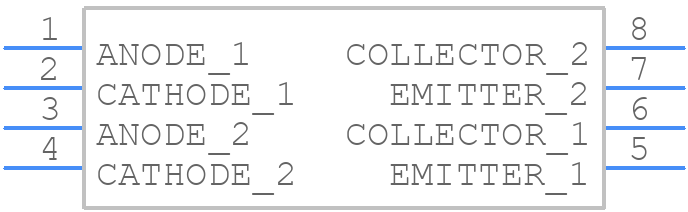

Symbol
MCT9001 - onsemi - PCB symbol
click to zoom
PCB Footprints
MCT9001 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P CASE 646CQ ISSUE O
click to zoom
3D Models
MCT9001 - onsemi - 3D model - Dual-In-Line Packages - PDIP8 9.655x6.6, 2.54P CASE 646CQ ISSUE O
click to zoom

MCT9001 Details

  • Manufacturer Part Number:

    MCT9001

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000025 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MCT9001 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MCT9001 is 4.5V to 5.5V, with a typical operating voltage of 5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and to ensure good thermal design and heat sinking.
  • The maximum allowable current through the MCT9001's output pins is 20mA per pin, with a total current limit of 100mA for all output pins combined.
  • The MCT9001 can be interfaced with a microcontroller or other digital logic using standard CMOS logic levels, with a recommended pull-up resistor value of 1kΩ to 10kΩ for the output pins.
  • The MCT9001's internal pull-up resistors are used to pull up the output pins to the supply voltage when the device is in a high-impedance state. These resistors can be enabled or disabled using the device's control pins, and can be used to simplify the interface to external circuitry.
