MF0204FTE52-220R - Yageo Group

Description: Metal Film Resistors - Through Hole

Download MF0204FTE52-220R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MF0204FTE52-220R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

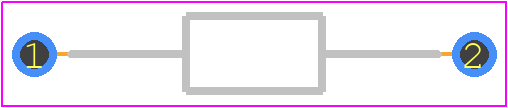

MF0204FTE52-220R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - mf0204
click to zoom
3D Models
MF0204FTE52-220R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - mf0204
click to zoom

MF0204FTE52-220R Details

  • Manufacturer Part Number:

    MF0204FTE52-220R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    1.9 mm

  • Package Length:

    3.4 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Rated Power Dissipation (P):

    0.4 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    220 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    250 V

MF0204FTE52-220R Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the MF0204FTE52-220R is a peak temperature of 260°C with a dwell time of 10-30 seconds, and a ramp-up rate of 3°C/s.
  • Yes, the MF0204FTE52-220R is a thin-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
  • The MSL of the MF0204FTE52-220R is level 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before soldering.
  • The MF0204FTE52-220R has a maximum operating temperature of 150°C, but it can withstand short-term excursions up to 200°C. However, prolonged exposure to high temperatures may affect its reliability and lifespan.
  • Yes, the MF0204FTE52-220R is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in EU and other environmentally conscious markets.
