MF8CCN - Texas Instruments

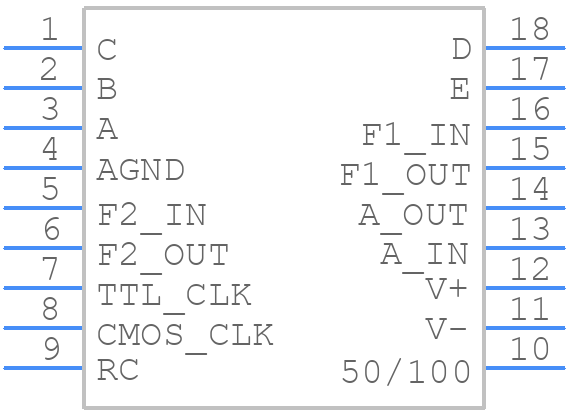

MF8CCN Details

• Manufacturer Part Number:

  MF8CCN

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP, DIP18,.3

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Active Filter Type:

  SWITCHED CAPACITOR FILTER

• Center or Cutoff Freq Rng-Max:

  20 kHz

• Center or Cutoff Freq Rng-Min:

  0.0001 kHz

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e0

• Length:

  21.78 mm

• Neg Supply Voltage-Max (Vsup):

  -7 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  2

• Number of Terminals:

  18

• Operating Temperature-Max:

  70 °C

• Order:

  2ND

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Poles and Zeros:

  2 AND 0

• Qualification Status:

  Not Qualified

• Response:

  BANDPASS

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  12 mA

• Supply Voltage-Max (Vsup):

  7 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transfer Characteristics:

  RESISTOR PROGRAMMABLE

• Width:

  7.62 mm
