MFS2613AMBA0AD - NXP

Description: Power Management Specialised - PMIC Safety System Basis Chip with Low Power for ASIL B, LQFP-48 tray

Download MFS2613AMBA0AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

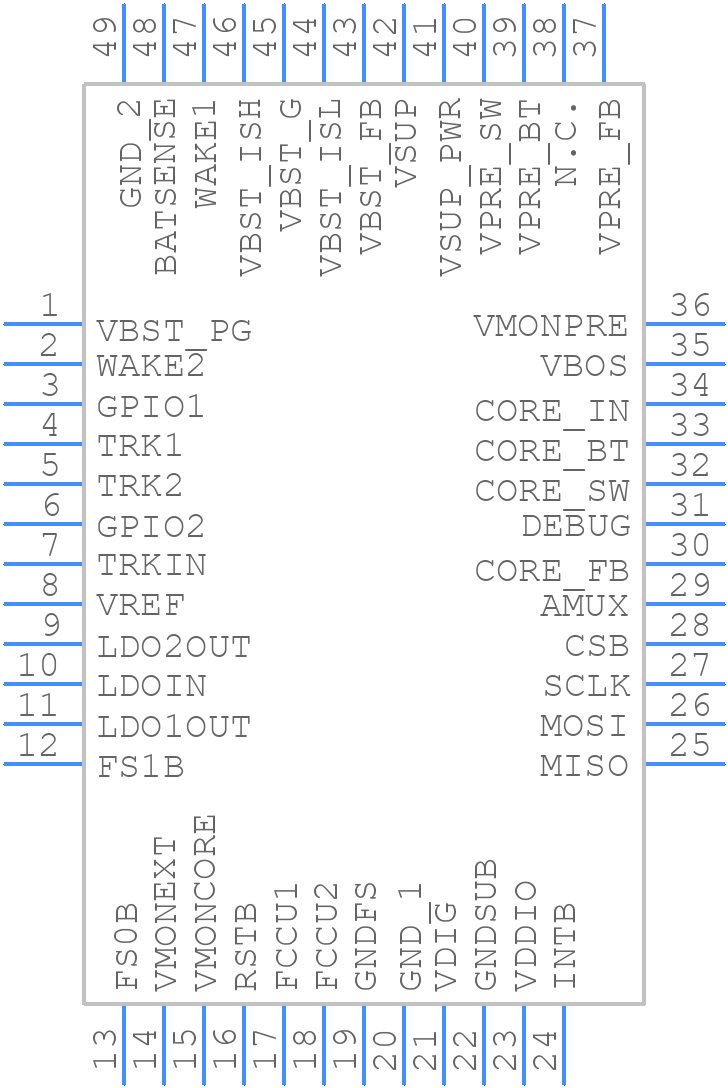

MFS2613AMBA0AD - NXP - PCB symbol
click to zoom
PCB Footprints
MFS2613AMBA0AD - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-6
click to zoom
3D Models
MFS2613AMBA0AD - NXP - 3D model - Quad Flat Packages - SOT1571-6
click to zoom

MFS2613AMBA0AD Details

  • Manufacturer Part Number:

    MFS2613AMBA0AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MFS2613AMBA0AD Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and thermal management guide in the MFS2613AMBA0AD application note (AN11524). It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
  • To achieve optimal power efficiency, configure the device in low-power mode (LPM) when not transmitting. Adjust the bias current, output power, and modulation scheme according to your application's requirements. Refer to the datasheet and application notes for specific guidance.
  • Impedance matching and tuning are crucial for optimal performance. Ensure that the PCB layout and component selection provide a 50-ohm impedance match. Use simulation tools and measurement techniques to optimize the matching network. NXP provides guidance on impedance matching in the application notes.
  • To troubleshoot output power droop or frequency drift, check the device's operating conditions, such as temperature, voltage, and current. Verify that the device is properly biased and that the output matching network is optimized. Use measurement tools like spectrum analyzers and oscilloscopes to identify the root cause of the issue.
  • NXP recommends using industry-standard test and measurement procedures, such as those outlined in the IEEE 802.11 standard. Use equipment like vector signal generators, spectrum analyzers, and oscilloscopes to characterize the device's performance, including output power, frequency, and modulation quality.
