MFS2633AMDA0AD - NXP

Description: Power Management Specialized - PMIC Safety System Basis Chip with Low Power for ASIL D, LQFP-48 tray

Download MFS2633AMDA0AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

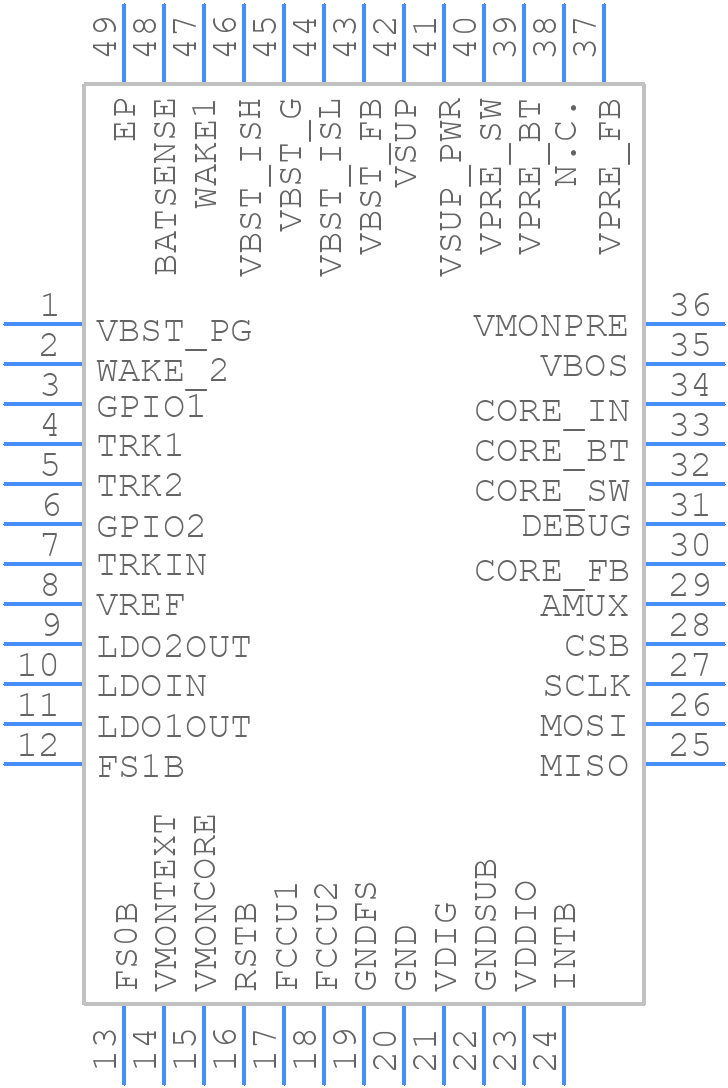

MFS2633AMDA0AD - NXP - PCB symbol
click to zoom
PCB Footprints
MFS2633AMDA0AD - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-6_2024
click to zoom
3D Models
MFS2633AMDA0AD - NXP - 3D model - Quad Flat Packages - SOT1571-6_2024
click to zoom

MFS2633AMDA0AD Details

  • Manufacturer Part Number:

    MFS2633AMDA0AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MFS2633AMDA0AD Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the layout symmetrical and avoid vias under the device. Use a 50-ohm microstrip line for the RF output.
  • Use the lowest possible supply voltage, enable the power-down mode when not transmitting, and optimize the transmit power level. Also, consider using a low-power mode for the crystal oscillator.
  • Use a 26 MHz crystal with a load capacitance of 10-20 pF and a series resistance of 1-2 kohm. Ensure the crystal is placed close to the device and the layout is symmetrical.
  • Implement error correction mechanisms like CRC and checksum. Use a robust modulation scheme like GFSK or MSK. Ensure proper antenna design and placement, and implement a retry mechanism for failed transmissions.
  • The MFS2633AMDA0AD is rated for operation from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal design and heat dissipation in your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFS2633AMDA0AD Overview

Use the download button to access the MFS2633AMDA0AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFS26, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
