MFS5600AMMA7ES - NXP

Description: Dual 36V Automotive DC-DC Controller/Regulator, SOT617-24(SC)

Download MFS5600AMMA7ES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

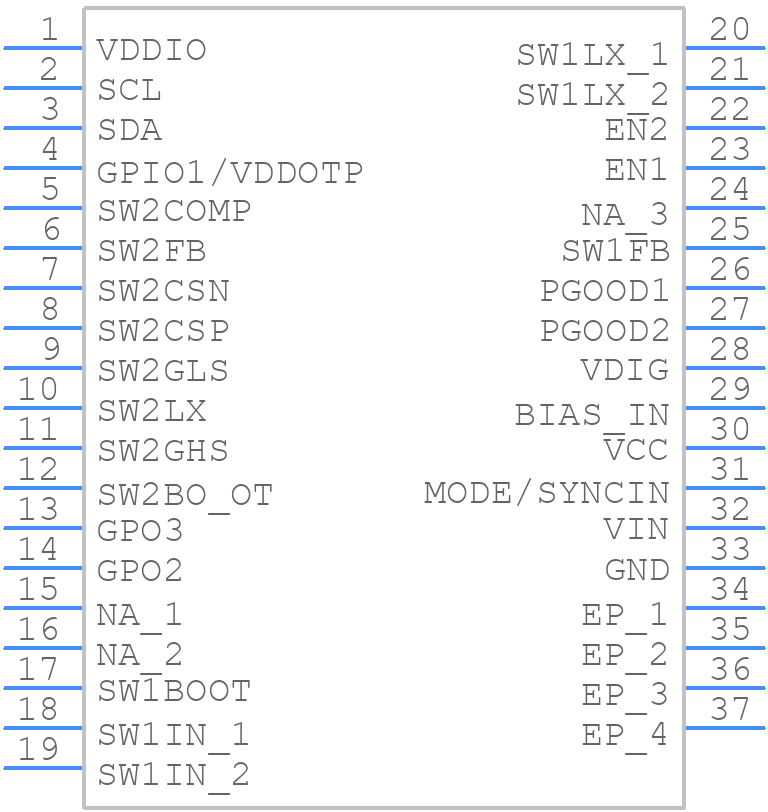

MFS5600AMMA7ES - NXP - PCB symbol
click to zoom
PCB Footprints
MFS5600AMMA7ES - NXP PCB footprint - Other - Other - MFS5600AMMA7ES-5
click to zoom
3D Models
MFS5600AMMA7ES - NXP - 3D model - Other - MFS5600AMMA7ES-5
click to zoom

MFS5600AMMA7ES Details

  • Manufacturer Part Number:

    MFS5600AMMA7ES

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY MANAGEMENT CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    1.4

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MFS5600AMMA7ES Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Follow the recommended PCB layout, use a metal shield around the device, and ensure proper grounding and decoupling. Additionally, use EMI filters and shielding on the input/output lines.
  • The MFS5600AMMA7ES is rated for operation from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The POR and BOR features are enabled by default. To handle them, ensure a stable power supply, use a capacitor on the VDD pin, and implement a reset circuit that can detect and respond to POR and BOR events.
  • The internal voltage regulator is enabled by default. For optimal performance, set the VREG pin to 1.8V, and use a 1uF capacitor on the VREG pin to filter out noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFS5600AMMA7ES Overview

Use the download button to access the MFS5600AMMA7ES schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFS56, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
