MFS5600AMMA8ES - NXP

Description: Automotive Safety HV Buck Converter + Controller Combo, QM , Surface mount , 2.7V ~ 36V , -40 °C ~ +125 °C (TA)

Download MFS5600AMMA8ES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

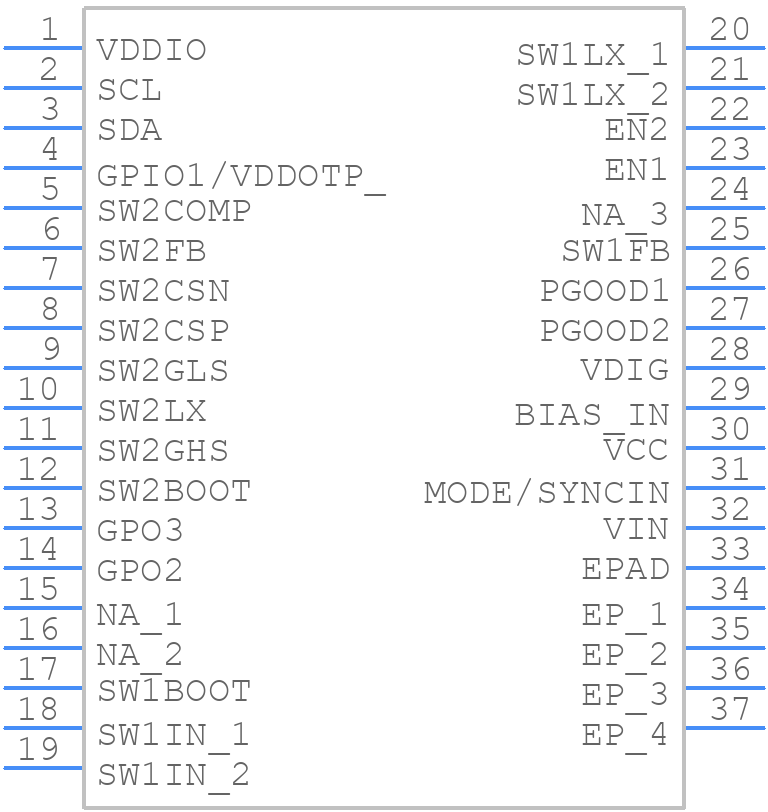

Symbol
MFS5600AMMA8ES - NXP - PCB symbol
click to zoom
PCB Footprints
MFS5600AMMA8ES - NXP PCB footprint - Other - Other - SOT617-24(SC)_2026
click to zoom
3D Models
MFS5600AMMA8ES - NXP - 3D model - Other - SOT617-24(SC)_2026
click to zoom

MFS5600AMMA8ES Details

  • Manufacturer Part Number:

    MFS5600AMMA8ES

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY MANAGEMENT CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    1.4

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MFS5600AMMA8ES Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Follow the recommended PCB layout, use a metal shield or a Faraday cage to enclose the device, and ensure proper grounding and decoupling. Also, consider using EMI filters and shielding on the I/O lines.
  • The MFS5600AMMA8ES is rated for operation from -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The POR and BOR features are enabled by default. To handle them, ensure that the power supply is stable and within the recommended voltage range. You can also use external circuitry to detect and respond to POR and BOR events.
  • The IVR is enabled by default. For optimal performance, set the IVR to the recommended voltage (1.2V or 1.35V) and ensure that the input voltage is within the recommended range (2.7V to 5.5V).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MFS5600AMMA8ES Overview

Use the download button to access the MFS5600AMMA8ES schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFS56, or try a keyword search, such as Power Management Circuits
