MIC1232NY - Microchip

Description: Supervisory Circuits Microprocessor Supervisor with Manual Reset, Watchdog Timer, 4.37V or 4.62V Thre

Download MIC1232NY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

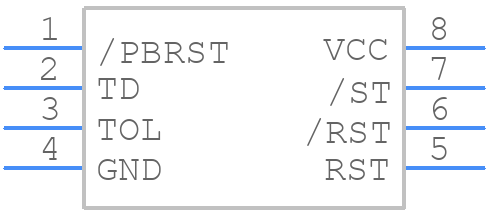

MIC1232NY - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC1232NY - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MIC1232NY
click to zoom
3D Models
MIC1232NY - Microchip - 3D model - Dual-In-Line Packages - MIC1232NY
click to zoom

MIC1232NY Details

  • Manufacturer Part Number:

    MIC1232NY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.779 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.669 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.37,4.62,5V

  • Width:

    7.62 mm

MIC1232NY Frequently Asked Questions (FAQs)

  • Microchip recommends a compact layout with the MIC1232NY placed close to the power source, with short traces and minimal vias to reduce noise and EMI. A 4-layer PCB with a solid ground plane is recommended. See Microchip's application note AN1263 for more details.
  • To ensure stability and reliability, follow the recommended operating conditions, decouple the input and output with capacitors, and use a low-ESR output capacitor. Also, ensure the PCB layout is well-designed, and the device is properly soldered and handled during manufacturing.
  • The MIC1232NY can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. See the datasheet for more information on output current capability and thermal derating.
  • The output voltage of the MIC1232NY can be adjusted by using an external resistor divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin is used to turn the MIC1232NY on or off. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC1232NY Overview

Use the download button to access the MIC1232NY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC12, or try a keyword search, such as Power Management Circuits
