MIC2605YML-TR - Microchip

Description: Switching Voltage Regulators 0.5A 1.2 MHz Wide Input Range Boost Regulator w/ Integrated Schottky

Download MIC2605YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

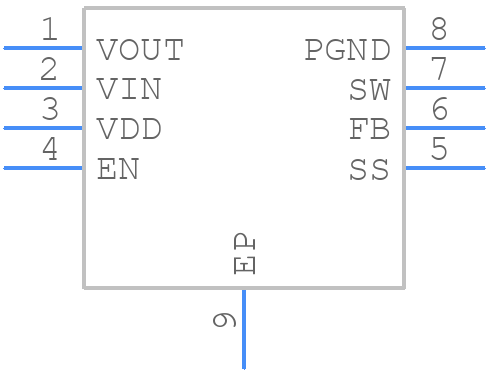

MIC2605YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC2605YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pin 2mm x 2mm MLF® (ML)
click to zoom
3D Models
MIC2605YML-TR - Microchip - 3D model - Small Outline No-lead - 8-Pin 2mm x 2mm MLF® (ML)
click to zoom

MIC2605YML-TR Details

  • Manufacturer Part Number:

    MIC2605YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OUTPUT VOLTAGE ADJUSTABLE TO 40V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    40 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1380 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MIC2605YML-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the MIC2605YML-TR near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have a solid ground plane to help dissipate heat.
  • To ensure proper biasing, connect the VIN pin to a stable voltage source, and the EN pin to a logic-level signal. The FB pin should be connected to a resistive divider to set the output voltage. Additionally, decouple the input and output pins with capacitors to reduce noise and ripple.
  • Exceeding the maximum junction temperature (TJ) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure the MIC2605YML-TR is operated within the recommended temperature range to maintain reliability and performance.
  • While the MIC2605YML-TR is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Microchip Technology Inc. or a qualified representative to determine the device's suitability for such applications.
  • To troubleshoot issues with the MIC2605YML-TR, start by verifying the input voltage, output voltage, and current draw. Check the PCB layout and component placement for any potential thermal or electrical issues. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC2605YML-TR Overview

Use the download button to access the MIC2605YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC26, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
